Brand Name: Yongda
Model Number: WZP-120
Place of Origin: Henan, China (Mainland)
Max Output Power: 100KW
Input Voltage: 320-420V
Input Current: 6-160A
Oscillation Frequency: 15-30KHZ
Cooling Water Pressure: 0.3Mpa
Warranty: 1 year
Cooling Water Flow (host): 25L/Min
Technology: IGBT
After-sales Service Provided: Engineers available to service machinery overseas
Name: energy smart stainless steel induction heating
high quality induction heating for pipes
The products of wzp series,wzp-120
The induction coils of machine
The main technical parameters
Model |
WZP-120 |
Input voltage |
320-420V |
Input current |
6-120A |
Oscillation frequency |
15-30KHZ |
Cooling water pressure |
0.3 MPA |
Size of generator |
850*600*1330mm |
Size of transformer |
780*540*520mm |
Weight of generator |
147KG |
Weight of transformer |
108KG |
Work piece hardening |
WZP-90 |
WZP-120 |
WZP-160 |
WZP-200 |
WZP-300 |
WZP-400 |
WZP-500 |
Shaft diameter (mm) |
40 |
70 |
100 |
120 |
160 |
250 |
600 |
Gears diameter (mm) |
80 |
120 |
250 |
300 |
400 |
500 |
/ |
Flat surface |
Common use model WZP-120 and WZP-160 for flat surface hardening |
||||||
The advantages of our firms products
One time can heat 3-5 pieces steel bars,depend on diameters and machine power.
Water cooling induction heating machine ,ensure machine 24 hours continuous working
Complete protecting functions:over current, over voltage, lack of phase, lack of water, OC.Reset, timer etc. When any alarm lamp light, machine stop heating, prevent it damaged, until trouble shooting, start heating again.
IGBT modules, full solid state induction heating machine, energy save 30%-50% than traditional high frequency tube machine or other heating metod,such as coal heating stove.
Induction coils are easy to change, customized coils, according to size of work pieces.
No-contacting work pieces , safe and reliable.
The application of energy smart stainless steel induction heating
High-frequency equipment use case description:
1. all kinds of shaft hardening, hardened layer 1.5-3mm, diameter Φ10mm-250mm, all types in the hole quenching.
2. Φ5-Φ12 wire annealing.
3. all kinds of brazing welding head.
4. Φ25 bar through the following heat, the speed much faster than the SCR. Φ60mm-Φ100mm bar diathermy
5. all kinds of chains, sprockets treatment
6. Angang weight of 80 tons 3 meters in diameter hardened gears
7. Hanjiang River Bridge with a thickness of 17.5mm Φ1016mm steel heated to 1,000 degrees bent shape.
8. necking forming various types of steel heat
9. copper bar annealing, wire annealing
10. Machine Tool Gears, Sprockets quenching
11. all kinds of heating elbow flared necking.
12. Φ50mm 3mm thick stainless steel annealing

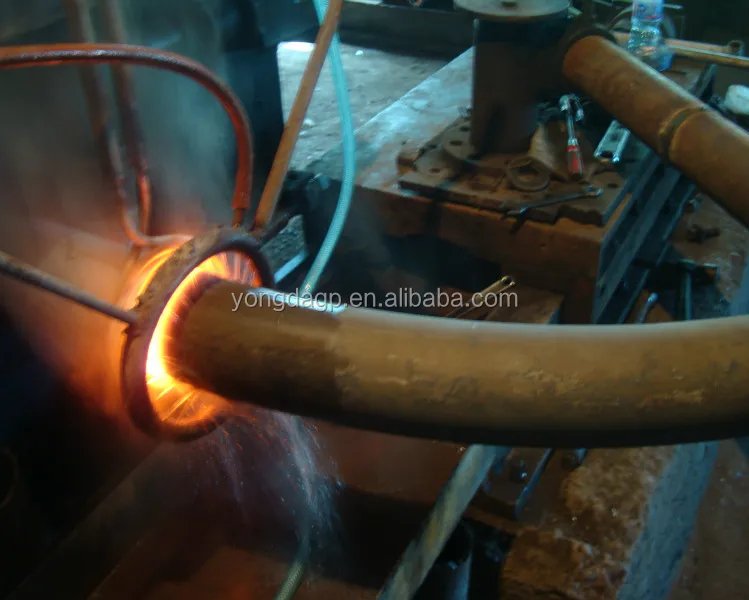

pipe bending machine
We are in International Industry Fair
The ISO9001:2000 international quality manage sysetem certification
The firm's reputation for quality
1. Packaged in fumigation-free wooden cases with anti-moisture/dust film
2. anti-shock foam inside and steel belts and rivets outside for fastening.
3. The stand of the case can bear weight twice of that of the machine.
Delivery:
1. 7-15 days after payment by sea/air/Express (such as DHL)
2. Reliable long-term freight forwarders are chosen for safety and speed.
1. One year warranty;
2. Long-term technical service;
3. Overseas on-site technicians service if required.
Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
Contact: Dean Guo
Mobile :0086 137 8367 0175
Tel : 0086 371 5501 6296
QQ : 3238426110
Thanks for your visit ! Welcome to cooperate with us!
