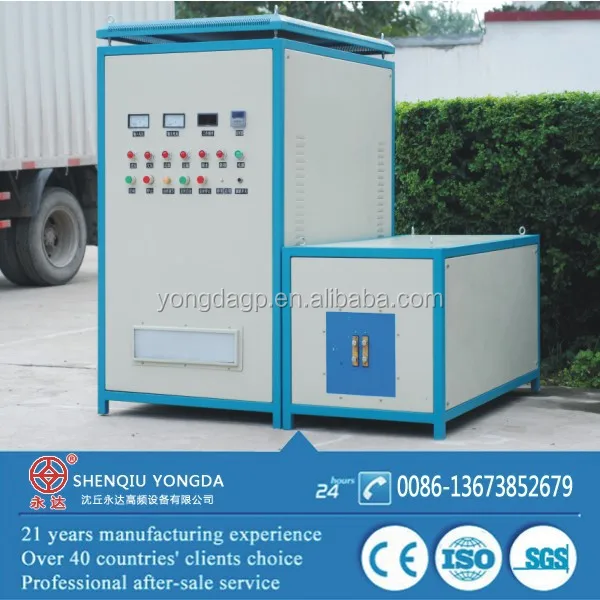

widely application solid state high frequency induction heating machine

widely application solid state high frequency induction heating machine

FOB Price:
US 5000-16000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Set/Sets per Year
Port:
Shanghai, Qingdao,Tianjin, Guangzhou or as you request
Place of Origin:
China (Mainland)
Payment Terms:
L/C,D/A,D/P,T/T,Western Union
Brand:
Yongda
Products Model:
WZP-500
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Yongda

    Model Number: WZP-500

    Place of Origin: China (Mainland)

  • Condition: New

    Voltage: 320-420V

    Power(W): 200-400KW

  • Certification: ISO

    Warranty: 1 year

    Input current: 6-500A

  • Oscillation frequency: 15-30KHZ

    Cooling water pressure: 0.3Mpa

    Cooling water flow(host): 25L/Min

  • NAME: application solid state high frequency induction heating machine

    After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

  • Packaging Details: 1.Two wooden cases(plywood) forinduction heating equipment .One for generator, one for transformer. 2. Accessories: induction coils,foot switch,installing and operating instructions 3.Transport by sea LCL or by air
  • Delivery Detail: Shipped in 7 days after payment

Specifications



Product Description

   widely application solid state high frequency induction heating machine

Major advantages of induction heating plate :
1.Fast heating, heating wide:
Less than one second ,fastest heating rate (speed adjustable ).
2. Protection all:
With over voltage, over current, overheating, lack of water and other alarm indicator, and automatic control and protection.
3. Safe and reliable:
no million-volt high-pressure, very safe for the operator:
Connect the power supply, the use of induction loop and out of the water, small size, light weight, learn to operate a few minutes.
4. High efficiency:
energy saving is very obvious, high-frequency devices than the traditional 60% saving Very even heating.
5.warming up quickly:
after annealing without waste. oxide reduction (sensor density, by adjusting, so that all parts of the workpiece, the coil temperature they need.)
6. Small size, light weight:
Only a few dozen kilograms, small footprint, saving plant. Business environment, protecting the environment, security is no noise, dust and other emissions.
7. Eliminate high pressure:
Eliminating the generation of nearly ten thousand high-voltage step-up changes, security is very high.
8. frequency bandwidth :
to meet the different parts of brazing, heat treatment, heating before forging
9.unique cooling circulation system:
ensure that the equipment 24 hours of continuous work.






APPLICATION

A:Heating (hot forging, hot fitting and smelting):
1 Hot forging aims to strength the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin.
2. Hot fitting refers to the connection of different metals or metals with nonmetals through the heating based on the principle of hot expansion or hot smelting, for instances, embedded welding of copper core of computer radiator with aluminum sheet and speaker web, compound of steel and plastic tube, sealing of aluminum foil (tooth paste peel), motor rotor and sealing of tubular electric heating element.
3. Smelting mainly aims to melt the metal into liquid by using the high temperature, which is mainly applicable to the smelting of iron, steel, copper, aluminum, zinc as well as various noble metals.





B. Welding (braze welding, silver soldering and brazing)

It mainly aims to melt the solder by heating it to a certain temperature for the purpose of connecting two types of metals of the same material or different materials.

1. Welding of various hardware cutting tools, such as diamond tool, abrasive tool, drilling tool, alloy saw blade, hard alloy cutter, milling cutter, reamer, planning tool and solid center bit. 2. Welding of various hardware mechanical gadget: Silver soldering and brazing of metals of the same variety or different varieties, such as hardware toilet and kitchen products, refrigerating copper fitting, lamp decoration fitting, precision mold fitting, hardware handle, eggbeater, alloy steel and steel, steel and copper as well as copper and copper.

3. Compound pot bottom welding is mainly applicable to the braze welding of circular, square as well as other irregular plain pot bottom. It is also applicable to plain braze welding of other metals.

4. Welding of heating disc of electric hot-water kettle mainly refers to the braze welding of stainless steel flat base, aluminum sheet and tubular electric heating elements of various forms.

C:Heat Treatment (surface quench):
It is mainly aims to change the rigidity of the metal materials through the heat treatment to work pieces. Detail applications are stated as follows:
1. Quench for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2.Quench for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Various electric tools, such as gear and axes.
4. Quench for machine tools, such as lathe deck and guide rail.
5. Quench for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Quench for hardware molds, such as small-size mold, mold accessory and inner hole of mold.



 The main technical parameters

Model

          WZP-500

Input voltage

320-420V

Input current

6-4000A

Oscillation frequency

15-30KHZ

Cooling water pressure

0.3 MPA

Size of generator

665*400*730mm

Size of transformer

660*490*435mm

Weight of generator

247KG

Weight of transformer

167KG



Packaging & Shipping

  Packaging:

1. Packaged in fumigation-free wooden cases with anti-moisture/dust film and

2. anti-shock foam inside and steel belts and rivets outside for fastening.

3. The stand of the case can bear weight twice of that of the machine.

Delivery:

1. 7-15 days after payment by sea/air/Express (such as DHL)

2. Reliable long-term freight forwarders are chosen for safety and speed.


After-sales Service:

1. One year warranty;

2. Long-term technical service;

3. Overseas on-site technicians service if required.

FAQ



What’s your MOQ?

Any quantity of machine will be accepted. MOQ:1 Set

Which place your factory is located?

We are located in Shenqiu County, Zhoukou city, Henan Province ,China

How far from Beijing? I think it is more closer to Shanghai

Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours.

We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing

Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email.

2. Yes, we can provide you factory pictures and machine water connection and control panel details.

Do you have quality certifications?

Yes, we got the ISO9001:2000 International quality management system certification in August,2001,

How do you packing the machines?

Standard export wooden cases(plywood)

Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof

More questions….?

Updating…



Company Information

  Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City. We professionally dedicated to Research & Development,production of high frequency induction heating machine, medium frequency induction heating equipment,supersonic frequency induction heating machine,induction forging machine, induction hardening machine, adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions. We have international trade office in zhengzhou. East to international airport (CGO), besides, high way, high speed rail,transport is very convenient.
