Brand Name: GYX
Model Number: GYXS-4208AW
Place of Origin: Guangdong, China (Mainland)
Usage: Indoor
Tube Chip Color: White
Display Function: Numeric
Pixels: 10mm
Screen Dimension: 44*24.8mm
Surface color: Black
Common Electrode: Common Cathode
Chip Material: InGaN
Lens Type: Yellow Diffused
Forward Current: 20mA
Reverse Voltage: 5v
Lead soldering temperature: 260 degrees for 3s
Luminous Intensity: 500~600mcd
Operating Temperature: -20~85℃
Forward Voltage: 2.8~3.5v

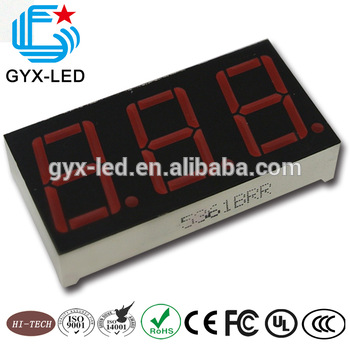

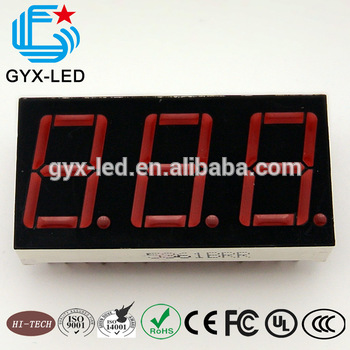

Good quality Red color 0.65" 7 segment led display 3 digit 0.65 inch
Features for 7 segment led display 2 digit
Semiconductor (LED) light source
Lower power consumption
Mechanically rugged
Essentially monochromatic light
Features and Benefits for Custom LED Digital Displays
Robust design for high reliability, longer life and hot and cold temperature operating capability
Alphanumeric characters and custom icons for messaging
Ability to flash or blink
Available to built in LED driver
Emissive display with brightness control
Aesthetically pleasing
Dimensions
Model | GYXS-4208AW |
Emitting Color | White |
Lens Type | Yellow diffused |
Description | Common Cathode |
Power Dissipation Per chip(Pd) | 80mW |
Operating Temperature | -20~85℃ |
Storage Temperature | -35~85℃ |
Lead Soldering Temperature | 260℃ for 3s |
Electrical/ Optical Characristics at Ta=25℃
Parameter | Symbol | Color | Min. | Typ. | Max. | Unit | Conditions |
Luminous Intensity Per Chip | Lv | White | 500 | 540 | 600 | mcd | If=20mA |
Forward Voltage | Vf | White | 2.8 | 3.0 | 3.5 | V | If=20mA |
Reverse Current | IR | White | / | / | 10 | uA | VR=5v |
Application for Standard LED Digital Displays
Application for Custom LED Digital Displays
Industrial Equipment
Networking
Outdoor Signs
Consumer
Consumer “White Goods”
Medical Equipment
Transportation
Computers and Peripherals
