Brand Name: F&C
Model Number: JG3-S300N
Place of Origin: Hunan, China (Mainland)
Usage: Position Sensor
Theory: Optical Sensor
Output: Digital Sensor
Response time: 0.5ms
Spot size: 1.0mm
Minimum detectable object: 0.06mm
Detection distance: 300mm
Product: laser distance sensor
Feature: background suppression
Type: red visible light laser switch

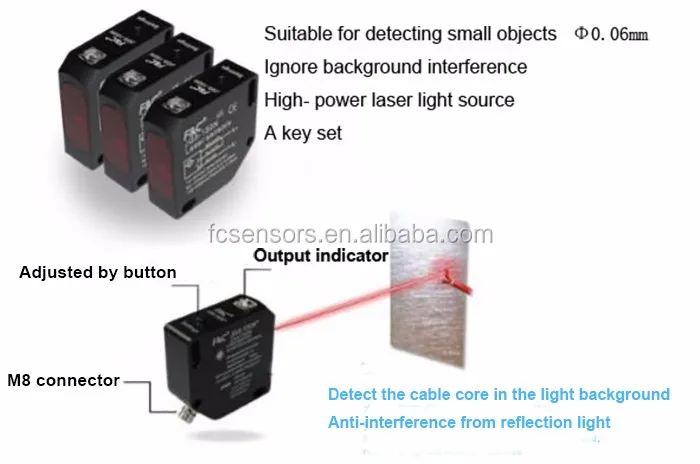

Feature of JG series laser sensor
1.A laser LED,visible light,reflective class 2
2.Push-button adjustment method
3.Can be set to a single point or two-point set
4.Small point ,JG5-150N 100MM spot only 1mm

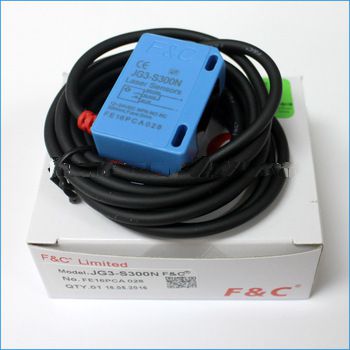

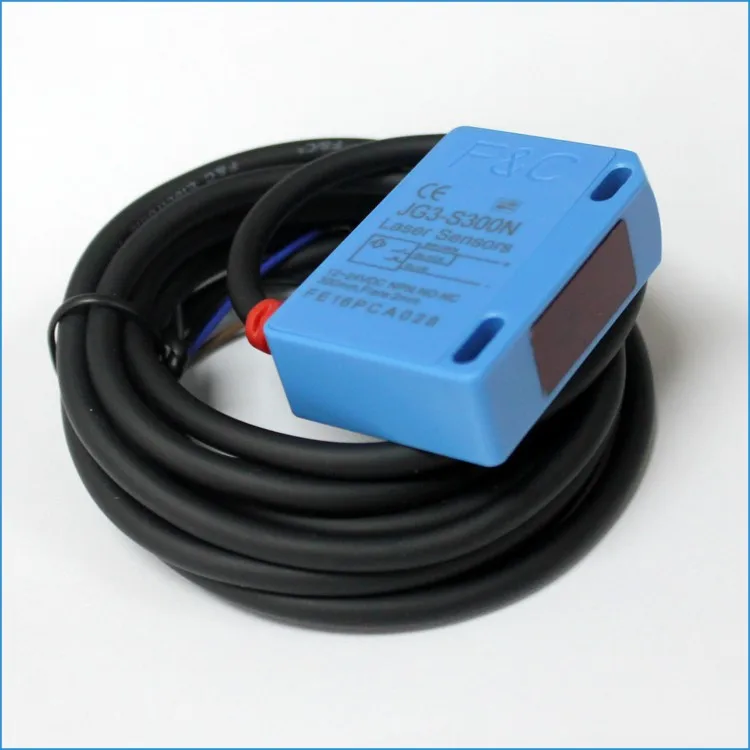

Product display
Specification
Model | JG3-S100N | JG3-S300N | |
Detection distance | 100mm | 300mm | |
Light spot | 1mm | 2mm | |
Mini detection object | 0.06mm | ||
Light source | laser light source | ||
Operation voltage | DC 12~24V include 10%(P-P) | ||
Current consumption | 100mA max | ||
JEC/JIStype/JEC/JIS | Class 2 | ||
Response time | 0.5ms | ||
Differential | (two points of setting) within 20% auto-setting | ||
Detection&blind area | >=35mm | ||
Mechanical reliability | vibration:XYZ,5—50Hz 1hour free-faller:2m high,10 times |
||
Electrical reliability | Wiring protection/protection/short-circuit protection | ||
Mode of operation | Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on | ||
indicator: Red/output, Green/stable, Default:dark-on | |||
Operating temperature | -20~+70°C(no freezing-in) | ||
Operating humidity | 35~85°C RH | ||
Sensitivity adjustment | adjusted by button | ||
Output control | NPN 100mA max DC 24V | ||
Ambient light | 5000 lux (filament lamp) ; 20000lux (sunshine) | ||
Crust material | Plastics case | ||
Wiring method | M8 connetor | ||
Weight | approx. 100g |

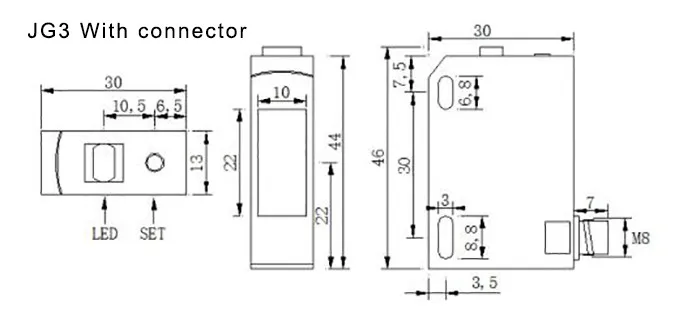

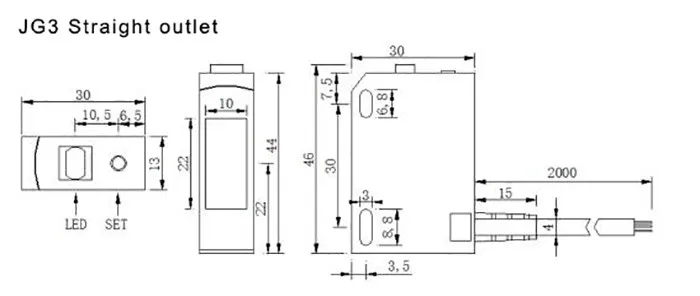

Dimension Drawing
Certifications
