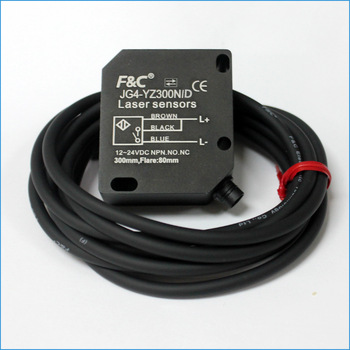

New products 2016 F&C button adjustable laser distance sensor switch
New products 2016 F&C button adjustable laser distance sensor switchNew products 2016 F&C button adjustable laser distance sensor switchNew products 2016 F&C button adjustable laser distance sensor switch

New products 2016 F&C button adjustable laser distance sensor switch

FOB Price:
US 95-150 / Piece
Min.Order Quantity:
5 Piece/Pieces
Supply Ability:
50000 Piece/Pieces per Month
Port:
Guangzhou; Shenzhen
Place of Origin:
Hunan, China (Mainland)
Payment Terms:
T/T,Western Union
Brand:
F&C, F&C
Products Model:
JG4-YZ300N/D
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: F&C, F&C

    Model Number: JG4-YZ300N/D

    Place of Origin: Hunan, China (Mainland)

  • Usage: Position Sensor

    Theory: Optical Sensor

    Output: Switching Transducer

  • Product name: New products 2016 F&C button adjustable laser distance sensor switch

    Sensitivity adjustment: Button to automatically adjust

    Voltage: 12-24VDC 10%

  • Detection distance: 300mm

    Spot size: 1.0mm

    Certificate: CE

  • Entry cable: M8 three-core wires

    Reaction time: 0.5ms

    Key words: laser distance sensor

Packaging & Delivery

  • Packaging Details: laser distance sensor Standard export package or customized package
  • Delivery Detail: Shipped in 7 days after payment

Specifications

New products 2016 F&C button adjustable laser distance sensor switch



Product Description

Specifications for laser distance sensor:



Model JG4-YZ100N/D JG4-YZ300N/D
Detection distance 100mm 300mm
Light spot 1mm 2mm
Mini detection object 0.06mm
Light source laser light source
Operation voltage DC 12~24V include 10%(P-P)
Current consumption 100mA max
JEC/JIStype/JEC/JIS Class 2
Response time 0.5ms
Differential (two points of setting) within 20% auto-setting
Detection&blind area >=35mm
Mechanical reliability vibration:XYZ,5—50Hz 1hour
free-faller:2m high,10 times
Electrical reliability Wiring protection/protection/short-circuit protection
Mode of operation Light-on/Dark-on, hold on button for above 10 Sec for switching. Default:Dark-on
indicator: Red/output, Green/stable, Default:dark-on
Operating temperature -20~+70°C(no freezing-in)
Operating humidity 35~85 RH
Sensitivity adjustment adjusted by button

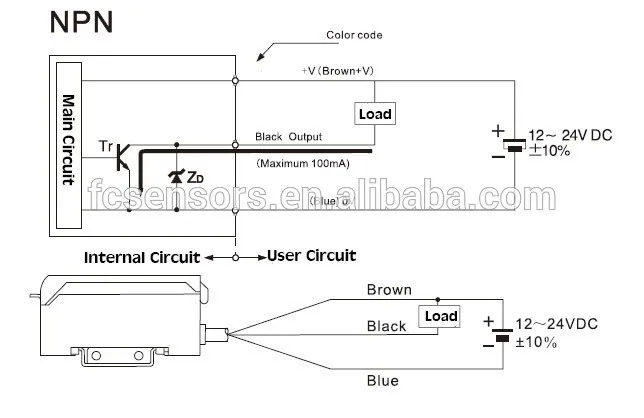

Output control NPN 100mA max DC 24V
Ambient light 5000 lux (filament lamp) ; 20000lux (sunshine)
Crust material Plastics case
Wiring method M8 connetor
Weight approx. 100g



 Features and advantages for laser distance sensor:



1. LED visible light Laser sensor with 2 level reflection.



2. Smart laser sensor, easy to install and set.



3. Button type sensitivity adjustment .



4. Single or two-point setting.



5. OEM order accepted.



Know more information about the products, welcome to contact me at any time via skype: Jelena_wang2016

product drawing

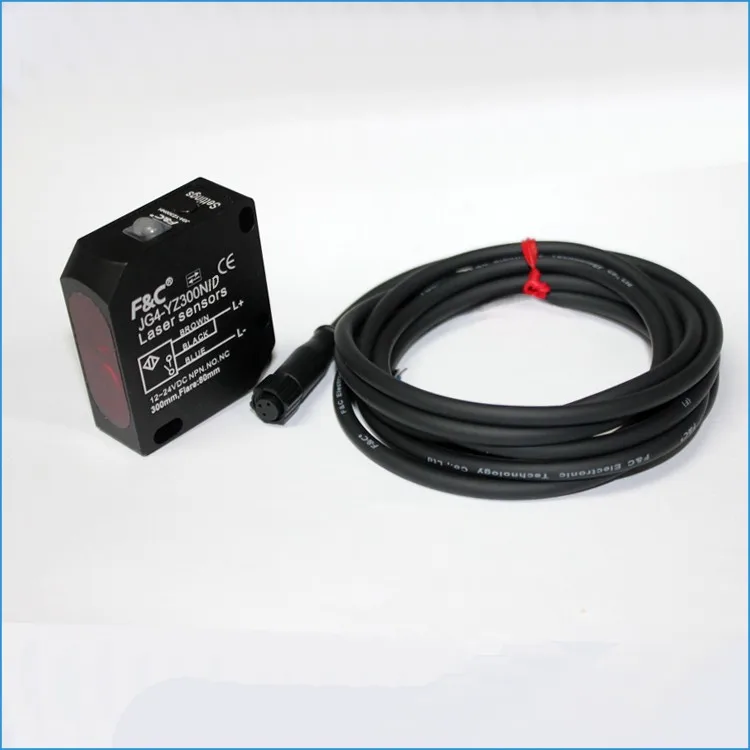

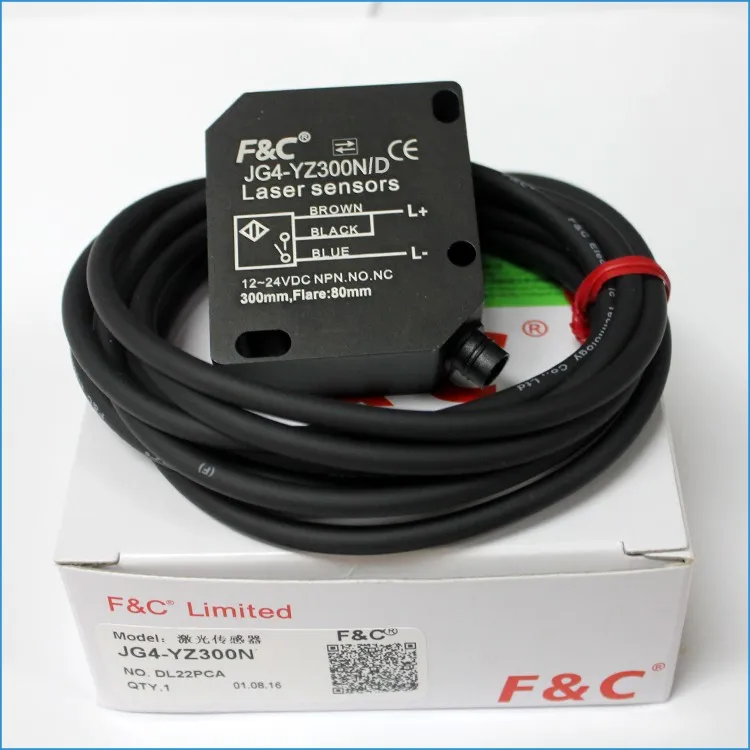

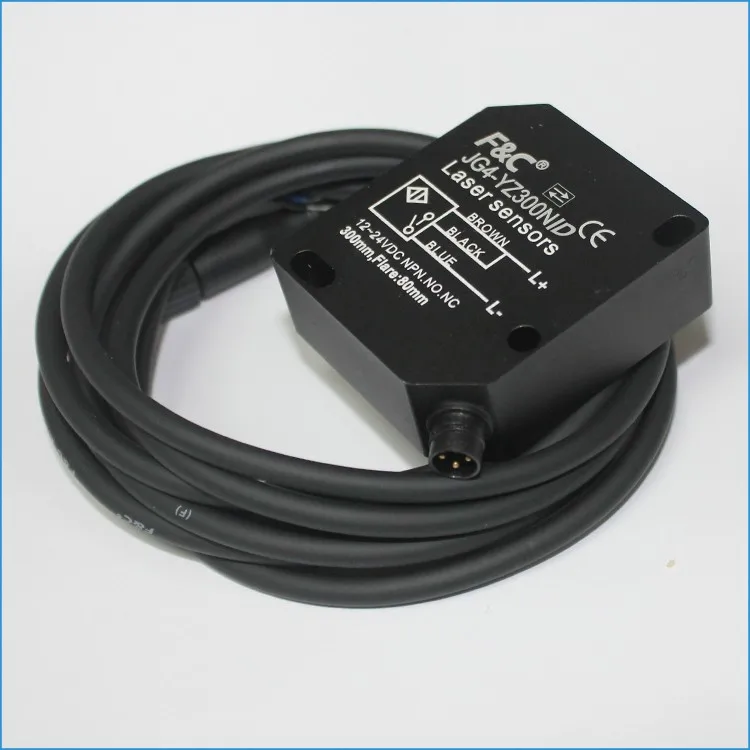

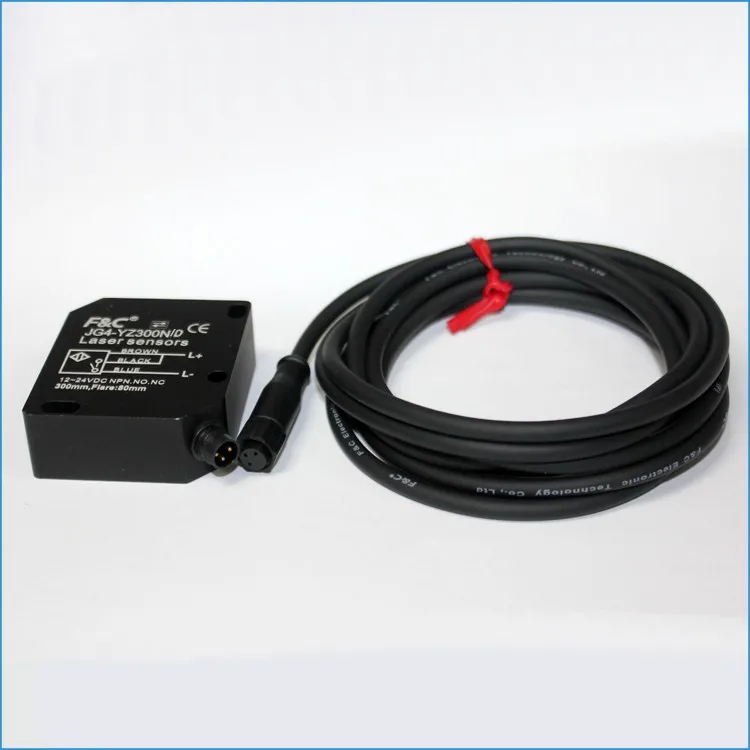

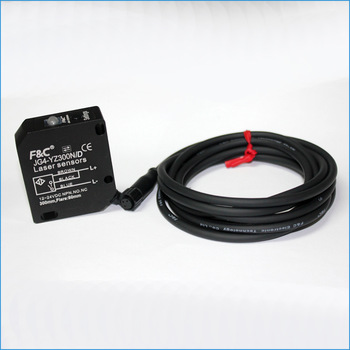

Photos for laser distance sensor:

Dimesion laser sensor:
