NFPA automatic contro lFire pump

NFPA automatic contro lFire pump

FOB Price:
US 1100-1719 / Unit
Min.Order Quantity:
1 Unit/Units
Supply Ability:
2000 Unit/Units per Month
Port:
NINGBO
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,T/T
Brand:
YOUJOU
Products Model:
XS
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: YOUJOU

    Model Number: XS

    Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

  • Packaging Details: EXPORT STANDAR WOODEN CASE
  • Delivery Detail: WITHIN 7 DAYS

Specifications

Product Description

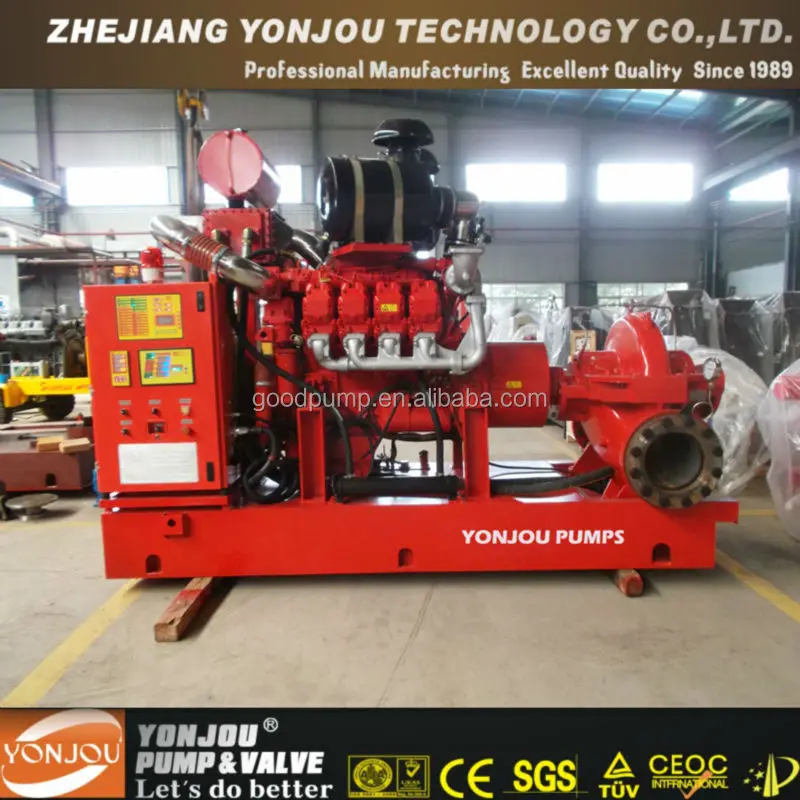

 NFPA 20 STANDARD DIESEL FIRE FIGHTING PUMP



Type XS are widely used in delivering liquids to the water plant, circulation water system of air conditioner, pipe net system of supplying heated water, construction, drainage pumping station, power station, power station, industrial water supply system, ship industry, mine and etc.



Application:

FIRE FIGHTING PUMP
Performance Range :




Capacity: Q up to 20000 m³/h
                   up  to 88000 gpm
Head: H up to 200 m
              up to 600 feet
Temperature: T up to 105°C
                        up to 200°F
Speed: n 2900/1450/980/740/580rpm
              3500/1750/1180/890/710rpm

Description :

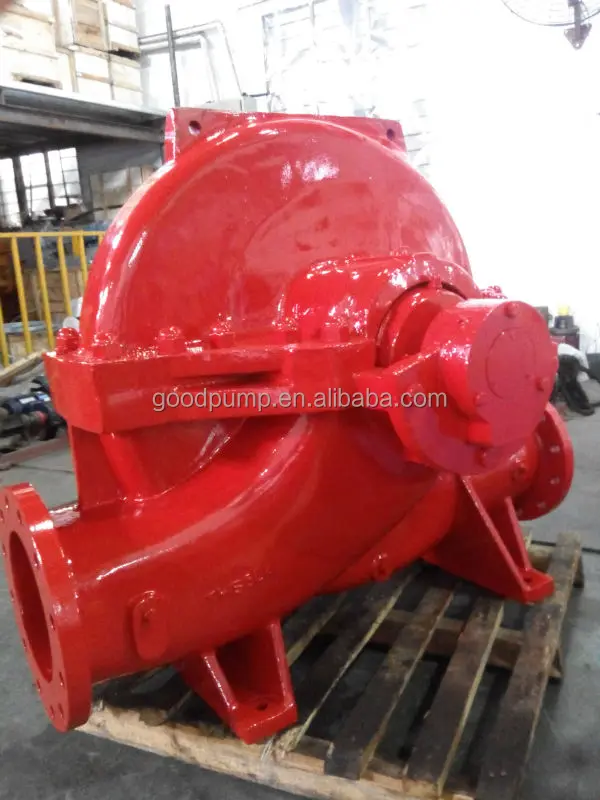

The casing is axially split, which permits removal of the complete rotor without moving either piping or motor. Pumps generating high heads have double volutes to reduce radial forces.
Replaceable wear rings protect the casing at the impeller running clearances. Flange drilled to ISO, DIN, BS or ANSI.
The close double suction impeller gives practically zero axial forces. Each impeller is statically and dynamically balanced according to NFPA 20 STANDARD .
Vertical or horizontal, soft packing or mechanical seal, grease or oil lubrication bearing on request. NFPA 20 standard pump is available
Standard material :

Casing: Cast iron
Ductile cast iron
Cast steel
Stainless steel
Shaft: C-steel
Cr-steel
Impeller: Cast iron
Bronze
Brass
Stainless steel
Wear ring: Cast iron
Brass



DIESEL BRAND:

CUMMINS / DEUTZ and other chinese brands
