Polyesterimide Enameled CCA Round Wire 0.15mm-4.60mm Class 220 Standard Enamelled Copper Clad Aluminum Wire Price

FOB Price:

US 0.1-10 / Kilogram

Min.Order Quantity:

1000 Meter/Meters

Supply Ability:

500 Meter/Meters per Day

Port:

Any main port of China is available

Place of Origin:

China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Galaxy

Products Model:

CCA

Products Details
Company Profile

Quick Details

Brand Name: Galaxy

Model Number: CCA

Place of Origin: China (Mainland)
Type: Insulated, Manufacturer
Application: motors,transformers,generators,coil winding of electronic components
Conductor Material: Copper Clad Aluminum
Conductor Type: Solid
Insulation Material: Enamelled
Class: 130,150,155,180,200,220
Color: Reddish brown or as customers' request
Insulation thickness: Grade 1,Grade 2,Grade 3
Packing: Carton and Pallets
Key words: Enamelled copper wire
Payment terms: Paypal is acceptab | e
Quality: Strict Quality Control
Standard: IEC NEMA GB JIS
Price: Competitive OEM Price

Packaging & Delivery

Packaging Details: inner packing:different plastic reels according to wire diameter outer packing:cartons
Delivery Detail: 7-10 working days

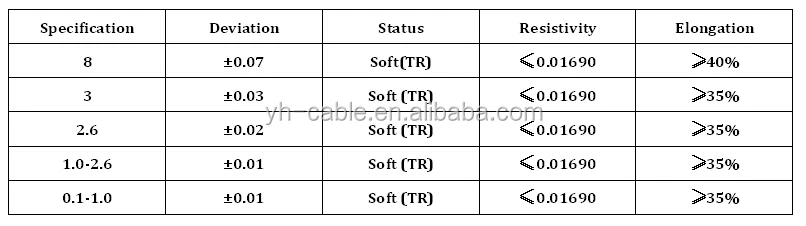

Specifications

1.Diameter:0.05mm-1.8mm
2.Class:130-220C
3.Enamel:PEW,UEW,EIW,EI/AIW
4.Sample is availablle

Polyesterimide Enameled CCA Round Wire 0.15mm-4.60mm Class 220 Standard Enamelled Copper Clad Aluminum Wire Price

1.Products Description:

Enameled CCA Wire( Enamelled CCA wire )

Enameled CCA wire is a new electromagnetic wire taking copper clad aluminum as inner conductor material, with characteristics between copper and aluminum. It combines excellent conductivity of copper and light weight of aluminum.

2.Standard:

Reference to SJ/T11223-2000 Copper Clad Aluminum Wire and GB/T6109.1 ~ 11-2008 Enameled Round Winding Wire

3.Advantages of Enameled CCA Wire

1.)DC resistivity: The DC resistivity of CCA wire is approximately 1.45 times that of copper wire; with the same resistance, CCA wire is about 1/2 heavy of copper wire.

2.)Good solderability: CCA wire is clad with a layer of concentric copper, so it has the same solderability as copper wire and doesn’t need special treatment as aluminum wire;

3.)Light weight: The density of CCA wire is 1/3 of copper wire of the same diameter; very effective to reduce the weight of cables and coils.

4.Scope of Supply of CCA Wire:

0.15-4.60 mm

5.Models of supplies of enameled CCA wires:

QA (N), QZ (N), QZY, and Q (ZY / XY)

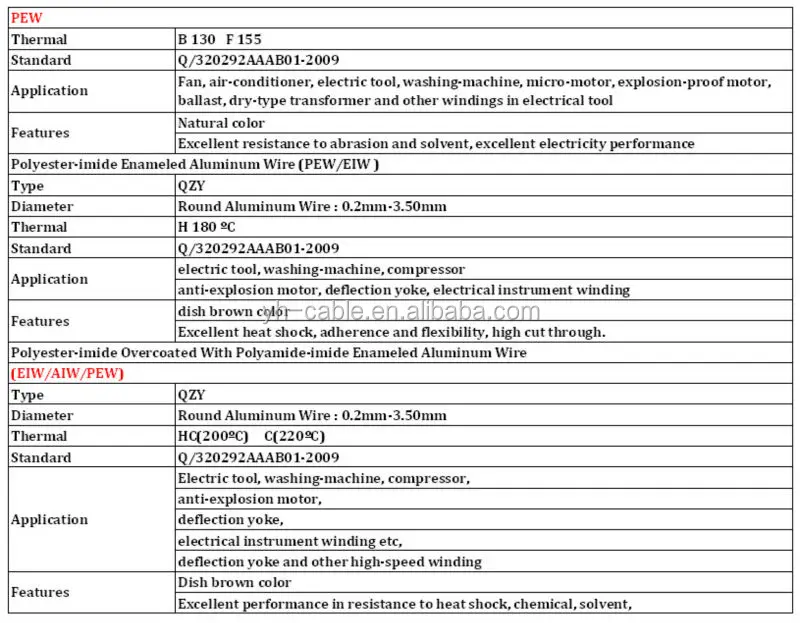

6.Product Types

1.)Polyester Enameled CCA round wire(PEW);

2.)Polyurethane Enameled CCA round wire(UEW);

3.)Polyesterimide Enameled CCA round wire(EIW);

4.)Polyesterimide over-coated with polyamide-imide Enameled CCA round wire(EIW/AIW).

7.Applications:

1.)High-frequency transformers, general transformers;

2.)Induction coils, magnetic coils;

3.)Electromotors including household electromotors, a variety of micro-motors, compressors, and other electromotors with high environment requirements;

4.)Special electromagnetic wire for audio coils and CD drivers;

5.)Electromagnetic wire for monitor deflection coils;

6.)Various types of magnetic coils and induction coils;

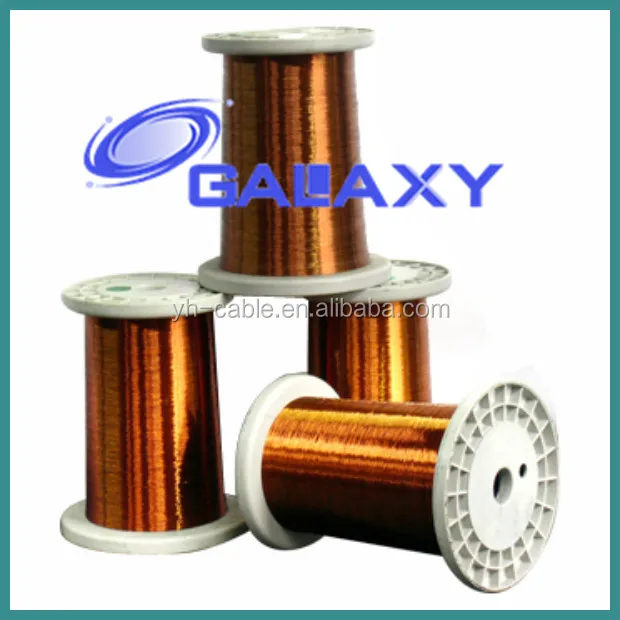

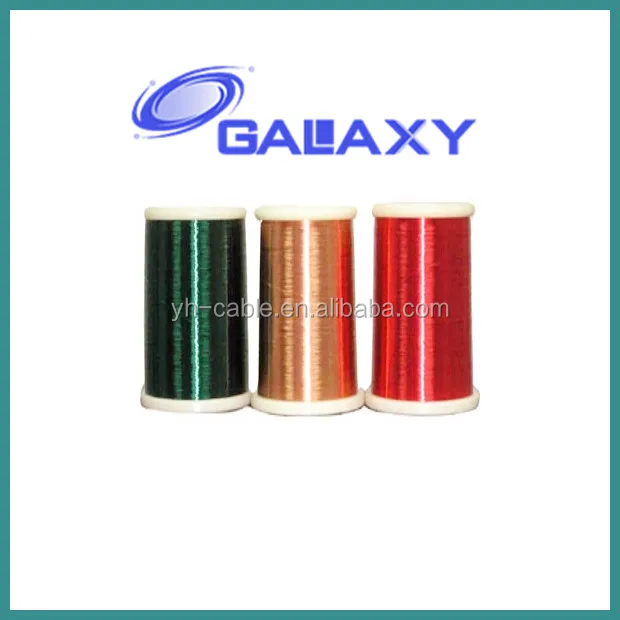

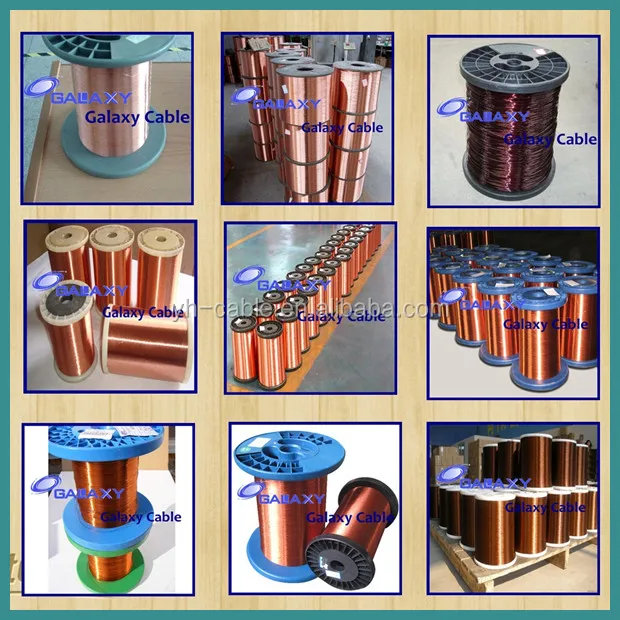

8.Products Photos:

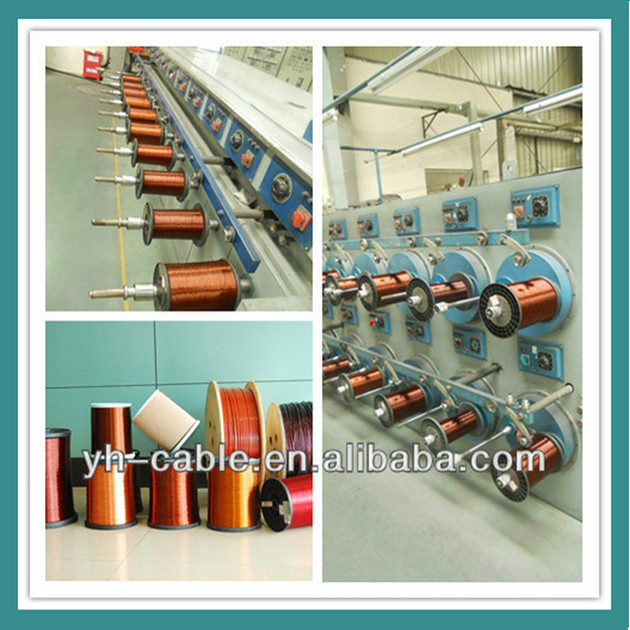

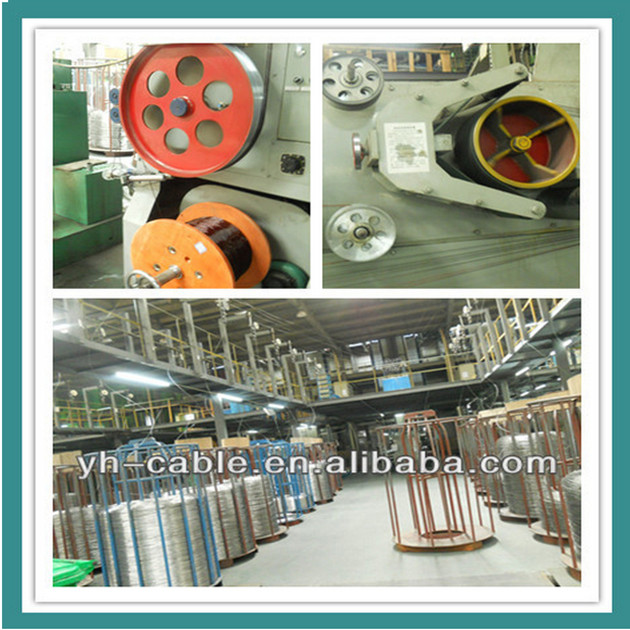

9.Workshop:

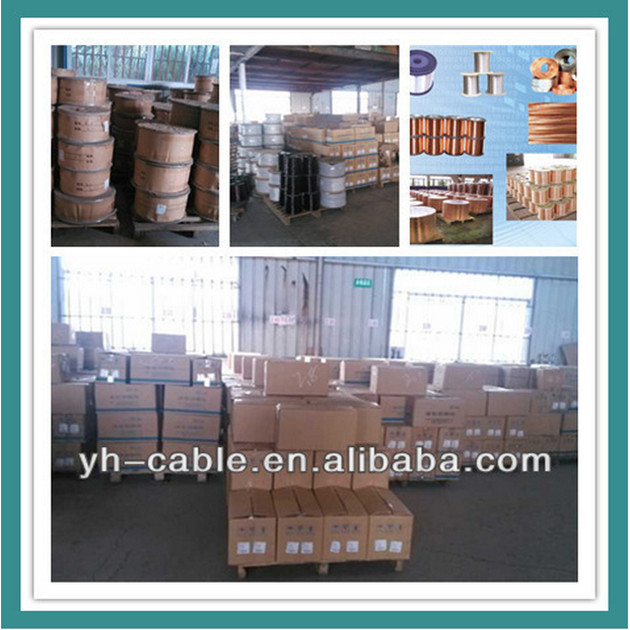

10.Packing Photos:

11. Contact Details:

Contact person: Ms. Sophia Lee

Mob.: +86-13379248457

Skype: galaxy-cables

Website: http://www.yh-cable.com/

Xi'an Galaxy Imp & Exp Co., Ltd is a professional supplier, which is engaged in exporting all kinds of enameled copper wires,enameled aluminum wires,enameled copper clad aluminum wires,CCA/CCS/CCAM wires,electric wires and cables , heating cables and mats,power cables,welding cables, solar cables, communication cables and optical fiber wires, We are located in Xi'an city Shaanxi province. In recent years, Among our clients from Northern Europe,Southeast Asia,Africa,Western Europe and so on. we enjoy a good reputation through several year's effort and experience. In addition, our products can meet GB, IEC, UL,BS,AS,ASTM standards. Now our foreign trade department is a strong cohesive force team with professional skills, we are always available to discuss your requirements and ensure full customers' satisfaction. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to us about your sourcing requirements, we will try our best to give you a perfect solution at first time. Your satisfaction is our motivation . we warmly welcome your contacting.
