Home > Products > Refrigeration Fittings > Ball valve

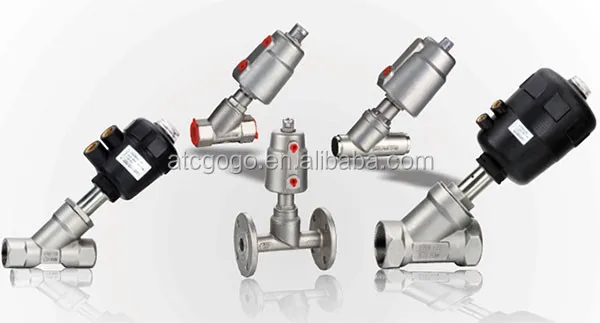

2 Way 2 Position Pneumatic angle seat valve china manufacturer

FOB Price:

US 1-50 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Month

Port:

Ning Bo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

GOGO

Products Model:

ASV201-10

Products Details
Company Profile

Quick Details

Brand Name: GOGO

Model Number: ASV201-10

Place of Origin: Zhejiang, China (Mainland)
Standard or Nonstandard: Standard
Structure: Angle
Pressure: Medium Pressure
Power: Pneumatic
Material: Stainless Steel
Temperature of Media: High Temperature
Media: Air ,steam ,gas
Port Size: 1/2’ -3’
Application: General
Ambient Temperature: -10°C to +60°C
body material: CF8 or CF8M
Applicable fluid: Air ,steam ,gas
seal: PTFE
Type: normally open, normally closed, double acting
Connection: Threaded (BSP, BSPT, NPT), Welded, Flanged, Tri-clamp
Operating pressure: 0-16bar

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 7 days

Specifications

2 Way 2 Position Pneumatic angle seat valve china manufacturer

Specification

Angle Seat Valve-2 Way 2 Position Pneumatic Angle Seat Valve

Orifice size (mm)	Port size (G or NPT)	Kv (m3/h)	Operating pressure (bar)	Min. pilot pressure (bar)	Flow direction
13	1/2”	4.2	0~16	2.7~3.0	Above seat
20	3/4”	8		2.7~3.4
25	1”	19		2.7~5.0
32	1 1/4	27.5		3.6~5.0
40	1 1/2	42		3.6~6.2
50	2”	52		3.6~7.4
65	2 1/2	77		3.6~10
80	3”	110		3.6~10
For steam more than 180°C, max. Operating pressure is 10 bar

Dimensions

1 Cap (PC)	11 Piston Spring (65MN)
2 Indication Rod (PA6/30GF)	12 Sealing components
3 Cover (PA6)	13 Guide sleeve (PTFE)
4 Spring (65Mn)	14 Seal washer (PTFE)
5 Piston (PPS)	15 Piston rod (SS304)
6 Seal Ring (FKM)	16 Spool (SS304)
7 Limter (PPS)	17 Spool seal (PTFE)
8 Threaded sleeve (SS304)	18 Stainless steel gasket (SS304)
9 Connecting pipe (SS304)	19 valve body (SS304)
10 Valve cover (SS304)
