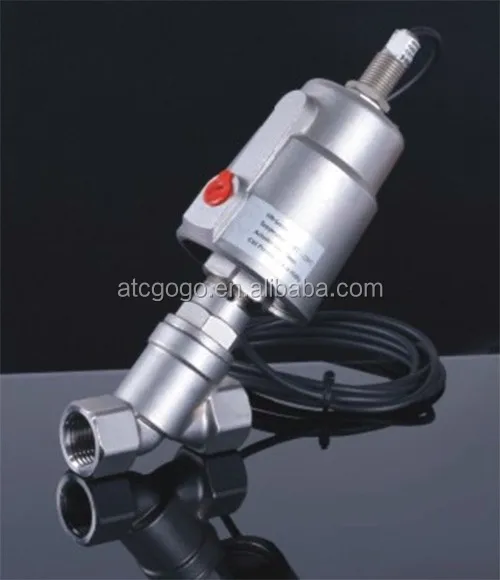

High quality stainless steel angle seat pneumatic valve with proximity switch

High quality stainless steel angle seat pneumatic valve with proximity switch

FOB Price:
US 1-50 / Piece
Min.Order Quantity:
1 Piece/Pieces
Supply Ability:
2000 Piece/Pieces per Month
Port:
Ning Bo
Place of Origin:
Zhejiang, China (Mainland)
Payment Terms:
L/C,D/P,T/T,Western Union
Brand:
GOGO
Products Model:
JF 100 series
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: GOGO

    Model Number: JF 100 series

    Place of Origin: Zhejiang, China (Mainland)

  • Standard or Nonstandard: Standard

    Structure: Angle

    Pressure: Medium Pressure

  • Power: Pneumatic

    Material: Stainless Steel

    Temperature of Media: High Temperature

  • Media: Water

    Port Size: 3/8’ 1/2’ 3/4’ 1’ 1-1/4’ 1-1/2’ 2’ 2-1/2’ 3'

    Application: General

  • Ambient Temperature: -10~80°C

    body material: CF8 or CF8M

    Applicable fluid: water, alcohol, oil. fuel. stam, nrutral gas or liquid,

  • seal: PTFE

    control pressures: 0.3~0.8 Mpa

    Type: normally open, normally closed, double acting

  • Connection: Threaded (BSP, BSPT, NPT), Welded, Flanged, Tri-clamp

Packaging & Delivery

  • Packaging Details: Carton
  • Delivery Detail: 7 days

Specifications

High quality stainless steel angle seat pneumatic valve with proximity switch





The summarize of the pneumatic angle seat valve
The thread pneumatic angle seat valve(Y-type) is widely used for beer beverage canned line, printing and dyeing textile, gas industrial, pharmaceutical and medical equipment, chemical industry, high temperature sterilization, foaming machine, water treatment equipment etc.
Specification:

switch can be installed on every actuator,indicating the valve on-off with signal
*Long service life, economical investment.
*Compact in size and lightweight.
* Large flux, small flux resistance, no water hammer.
*Stem automatic correction, self-lubrication, maintenance free.



Max pressure :             1.6 Mpa(232psi)

 pressure :                    0.3~0.8 Mpa (43.5-116psi)

Material :                      CF8M / CF8

Seal :                            PTFE

Actuator material :         CF8

Actuator size :               40mm, 50mm, 63mm, 90mm, 125mm



Applicable Fluid :          water, alcohol, oil, fuel, steam, neutral gas or liquid,                                                                         organic solvent, acid and lye

Max fluid viscosity  :     600mm²/s

Fluid temperature :       -10°c~180°c , 25°c~220°c

Ambient temperature :  -10°c~80°c



Control type :                 Normally open, Normally closed single acting/double  acting ,
                                                  Double acting

Connection  :                 Threaded (BSP, BSPT, NPT), Welded, Flanged, Tri-clamp

Dimensions

1    Lndication rod (nylon)           9   Piston seal (VITON)

2   Actuator (CF8)                         10  Seal spring (AISI 304)

3   pILOT PORT (1/8")                   11  Connecting piece (CF8M/ CF8)

4   Stem (AISI316/ 304)                12  Body seal (PTFE)

5   Stem seal (PTFE)                   13  Valve core (VF8M/ CF8)

6   Cap (PC)                               14  Seat (PTFE)

7   Spring (steel 65Mn)                15  Gasket (AISI316/ 304)

8   Piston (Alu.alloy)                   16  Body (CF8M/ CF8)




Packaging & Shipping

                               1.Inner packing: opp bag, then carton box for each product                                                                                                                              2.Outer packing: export standard carton, Foam outside protecting the goods against damage                          3.Usually we ship your order by sea or by air...                                                                                                    4.We do our best to ship your order within 1 week after receiving your payment                                                5.We'll tell you the tracking number once your order has been sent                                                                    6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal



Company Information

Q: What is your main market?



A: Our main market is north America, especially USA.



Q: Are you products standard?



A: Our model is standard, if you have specific demand, pls tell us.



Q: Do you have interest to do our own design items?



A: Absolutely! We have big interest.



Q: How to make the order?



A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
