Brand Name: LYTTE
Model Number: JZW
Place of Origin: Shandong, China (Mainland)
Type: HVAC Systems
Name: Air cooled condenser
Power Supply: 220V/50HZ | 380V/3P/50HZ
Applicable Temperature: -5~5℃ | -20℃~ -15℃ |
Refrigerant: R404A | R22
Compressor: Semi-hermetic Piston Compressor
Certificate: CE | ISO9001 | CRAA
CE,CE;ISO9001, CRAA, Used Condensing Unit, Air Cooled Condensing Units, JZW Series
Introduction
1. Brand refrigerant compressors with high reliability are selected.
2. Box type design, beautiful outlook, compact structure, convenient installation;
3. High efficiency, low noise;
4. World famous brand refrigeration parts are employed for all products;
5. Unit established by electrical control accessories, with the protection of lack of phase, overload, frequent start and high voltage.
Tecumseh Fully-hermetic Piston Compressor Series
1.Temperature:-5°C~ 5°C Models: JZW0.6MATY---JZW03MATY(0.6HP-3HP)
2.Temperature:-20°C~ -15°C Models: JZW01LATY---JZW03LATY(1HP-3HP)
Copeland ZB(Scroll) Compressor Series
1.Temperature:-5°C~ 5°C Models: JZW02MAGY---JZW08MAGY(2HP-8HP)
2.Temperature:-20°C~ -15°C Models: JZW02LAGY---JZW10LAGY(2HP-10HP)
Bizter Semi-hermetic Piston Compressor Series
1.Temperature:-5°C~ 5°C Models: JZW02MABY---JZW07MABY(2HP-7HP)
2.Temperature:-20°C~ -15°C Models: JZW02LABY---JZW12LABY(2HP-12HP)
JZW Series Box Type Air Cooled Condensing Units
Overall Size
Model Specifications
JZW 03 L A G Y
JZW--- LVTE Company Products Code 03--- Compressor Power Input(HP)
L---Temperature: M:-5°C~ 5°C L:-20°C~ -15°C
A--- Air Side Outlet
G---Compressor Brand, T—Tecumseh G—Copeland B—Bitzer
Y--- Refrigerant: Y—R404a; Others—R22

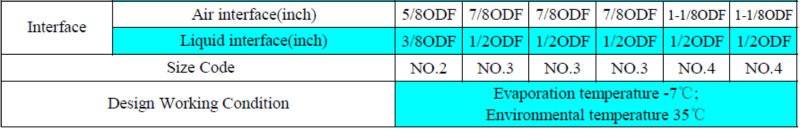

Technical Data
Products in the Factory
