High Qualified Insulated duct for clean room, metal duct for clean room, Insulated duct for hospital

FOB Price:

US 71-100 / Square Meter

Min.Order Quantity:

1000 Square

Supply Ability:

200000 Carat/Carats per Month

Port:

Xiamen

Place of Origin:

Fujian, China (Mainland)

Payment Terms:

T/T

Brand:

Ten-lead

Products Model:

TLS-60

Products Details
Company Profile

Quick Details

Brand Name: Ten-lead

Model Number: TLS-60

Place of Origin: Fujian, China (Mainland)
Type: Other Heat Insulation Materials
Core material: Phenolic
Density: 50-80kg/m3
Thickness: 20mm
Size: 3950*1200*20mm
Thickness of Inner facing steel: 0.3mm
Thickness of outer facing steel: 0.18mm

Packaging & Delivery

Packaging Details: cartons
Delivery Detail: Shipped in 20 days after payment

Specifications

Phenolic foam insulation material is a kind of new thermosetting foam, it 's widely used in UK, Korea, China building market for it's super fire-resistance, good insulation,

is the most potential alternatives of current product like rockwool, EPS, XPS , PU used in this fields.

Compared with EPS, Rockwool:

Fire Resistance Class 0 BS476

Higher thermal efficiency

Non-toxicity and low smoke

Anticorrosion and Anti-aging property

Waterproof and moisture-proof

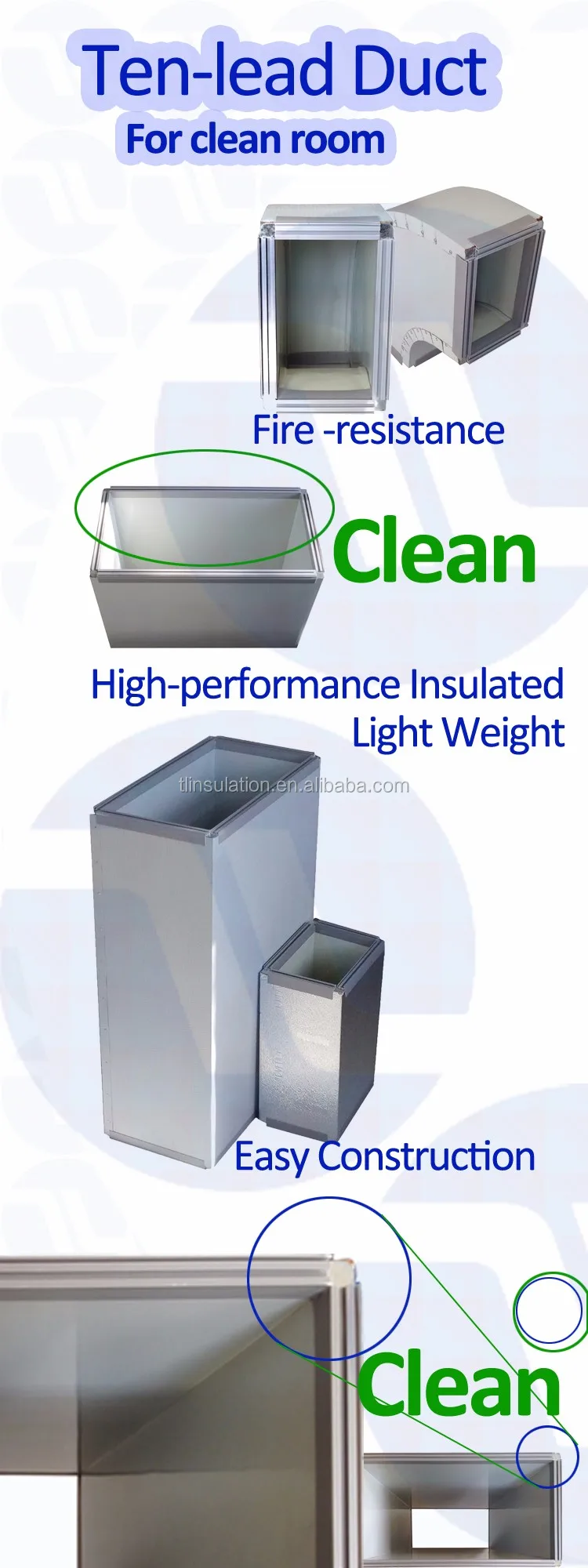

Can be further used for high qualified duct of clean room.

Core Material:

Item	Unit	Specification
Foam Density	kg/m3	50-70
Thermal Conductivity	w/m.k	0.02
Compressing Strength	Mpa	0.25
Bending Strength	Mpa	1.2
Combustibility Property		Class 0 (BS476 Part 6 & 7) Class A (ASTM E84)
Water Absorption	%	1.9
Max Smoke Density	%	2
Dimension Change	%	0.3
Working Temperature	°C	-250- +150
Maximum Allowable Wind Velocity	m/s	≤15
Continuous Running Maximum Temperature	°C	≤120

Inner plastic film, carton outside.

Fujian Tenlead Advanced Material Co,. Ltd is located in the biggest industrial zone of Pengkou, Liancheng, covering an area of total 200,000 sq. It is a large Innovative enterprises which combining with design, production and marketing of Phenolic Foam(PF) Insulation products. Company insist the technology as a pilot and focusing on the research and development and application of construct insulation products, decoration material. And our company is very strong, owns advanced equipment, with a total RMB investment of 1.5 billion , is the key enterprises in Fujian Province.
While focus on our own constructure and development, We also had a long-term cooperation with major universities and professional organizations such as Xi'an University, Qingdao Technological University, Beijing University of Chemical Technology, Shanghai Fudan University, Xiamen University Institute of Chemical Technology and established cooperative relations with all of them. Nowadays, we have 12 experts, 35 senior engineers and 56 research personnels. 80% of them are undergraduate, and others are postgraduate. We obtained more than 30 patents from provincial-level R & D center.
At present the products already across all over the country, there are offices and agents in the major cities. Also our products has been exported to America, Germany, Russia,Kuwait, Korea,Saudi Arabia, Japan, India, Indonesia, Taiwan and Hong Kong.
