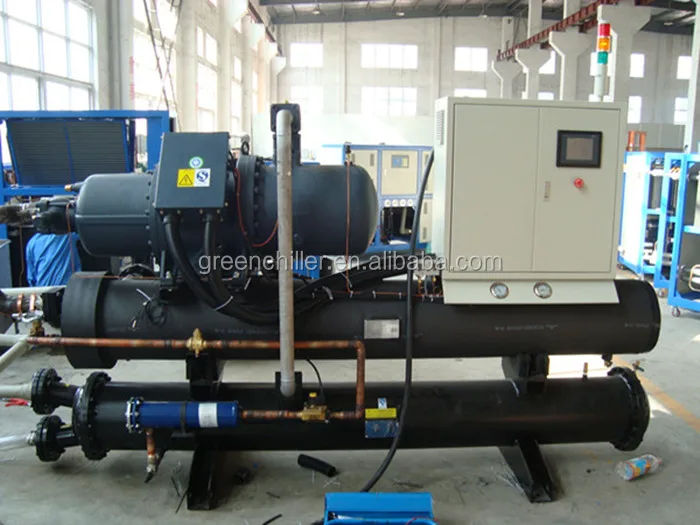

Large Capacity refrigerating Industrial Air Cooling Chiller Screw type air cooled water chiller/refrigerator chiller

FOB Price:

Open price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

300 Set/Sets per Month

Port:

Qingdao,Shenzhen,Shanghai,Guangzhou,Ningbo

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

MGREENBELT

Products Model:

Refrigerator chiller

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT

Model Number: Refrigerator chiller

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Standard woodn case
Delivery Detail: Within 15 days

Specifications

Refrigerator chiller
1.10% energy saving
2.Rustproof,anti-vibration
3.Temp range:-5C~ -80C
4.Glycol refrigerator chiller

Large Capacity refrigerating Industrial Air Cooling Chiller Screw type air cooled water chiller/refrigerator chiller

1.Our advantage

1).We are a solution provider! not only sell the Single Screw Refrigerator chiller, but also give you our whole service, all solution design for you project is free, include the project drawing, install design and etc.

2).MGREENBELT Single Screw Instant wine chiller has the characteristics of perfect case design, electrostatic plastic spraying shell, European design, beautiful&graceful appearance and easy installation.

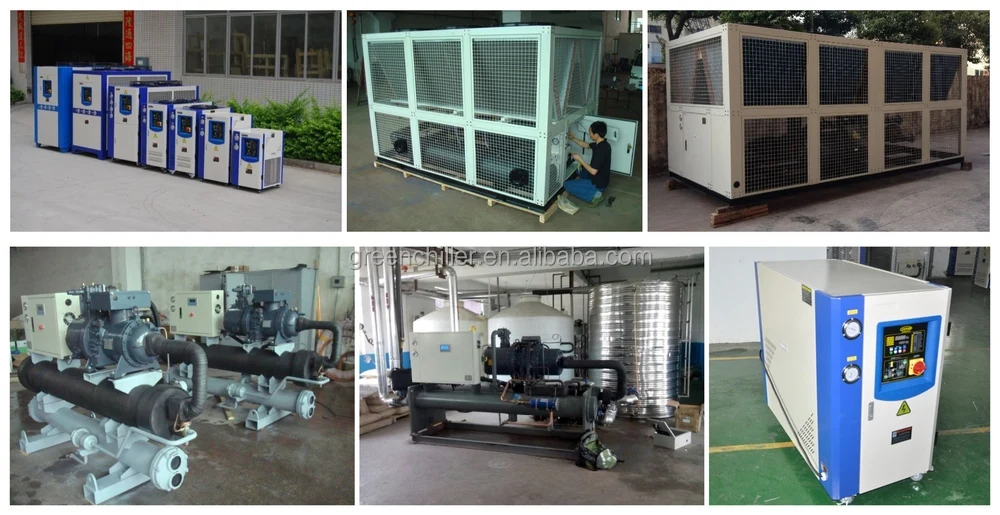

3). Different Single Screw Refrigerator chiller series we have

Product Description

2.Techncal specification of Single Screw Refrigerator chiller

Specification model	Unit	MG-120WL
Nominal cooling capacity	KW	131.6
Power consumption	KW	68.8
Running Current	A	119.2
Power supply	3PH-220V/380V/415V/440V-50HZ/60HZ
Cooling water flow	m3/h	82
Compressor	Type	Semi-hermetic screw
	Quantity	1
	Start-up mode	Y
	Energy adjust range %	0,33,66,100 or 0,25,50,75,100
	Power(kw)	36.5
Refrigerant	Type	R404A
	Control mode	Thermostatic Expansion Valve
	Charge (KG)	72
Evaporator	Type	Shell and tube
Evaporator	Inlet and outlet pipe diameter(inch)	PT 4"
Condenser	Type	Shell and tube
Condenser	Inlet and outlet pipe diameter(inch)	PT 5"
Dimension	LWH(mm)	35009001900
Weight	kg	2380

3.Feature

1). Single Screw Refrigerator chiller imported the compressor with a famous brand which has low temperature performance, reliable and durable, high refrigeration efficiency. Equipped with high precision microcomputer controller, automatic operation and without any people on duty.

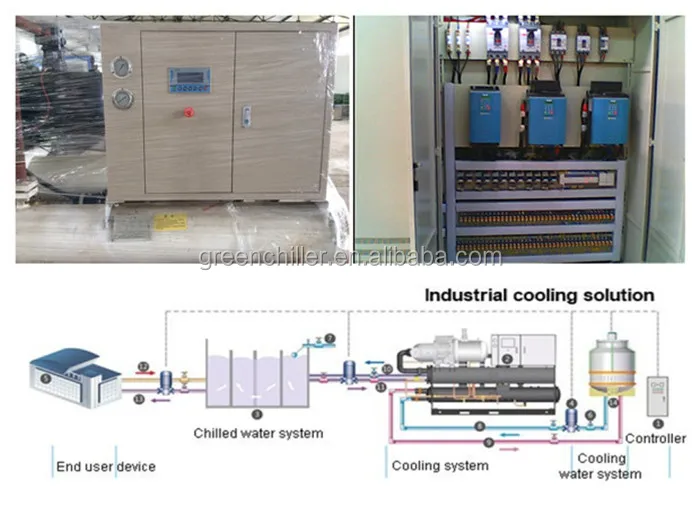

2).Factory units have been completed in all of the components to install, run tests, and add frozen oil cooling agents, the user can be linked sea and circuits can be put into use, a reduction of site installation and debugging time, and we will supply a solution drawing to pipe connect.

3).All the MG products have been CE, ISO9001 listed.

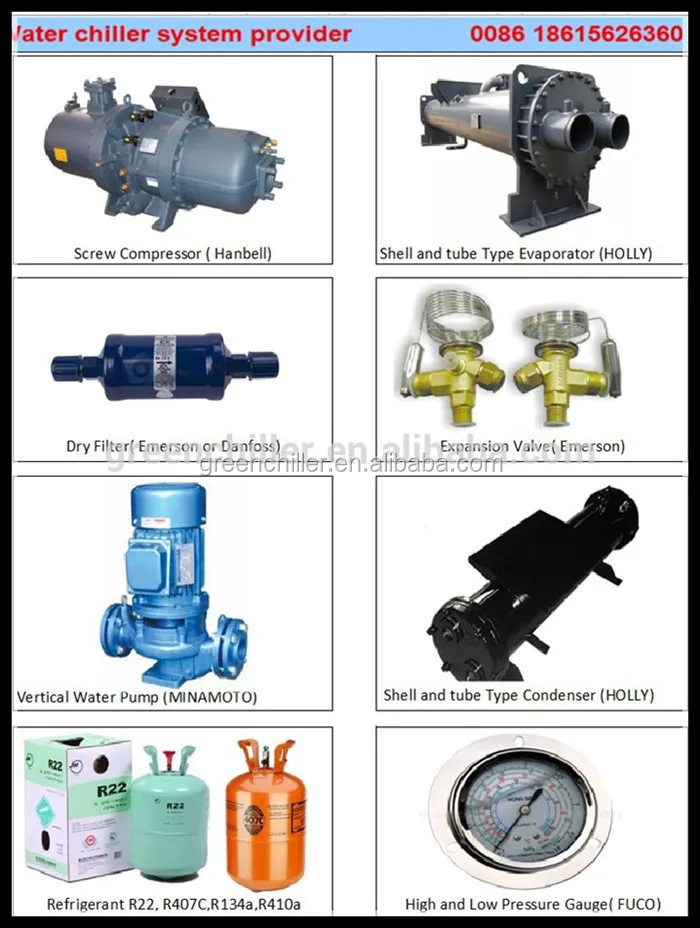

4).Main parts list

Name Brand Compressor Bitzer( Germany)

Electrical components Schneider(French)

Evaporator Holly(Taiwan)

Condenser Holly(Taiwan)

Pressure controller Fuco(Taiwan)

Controller Punpu(USA)

Expansion valve Dafoss/Emerson/Alco(USA)

Dry filter Dafoss/Emerson/Alco(USA)

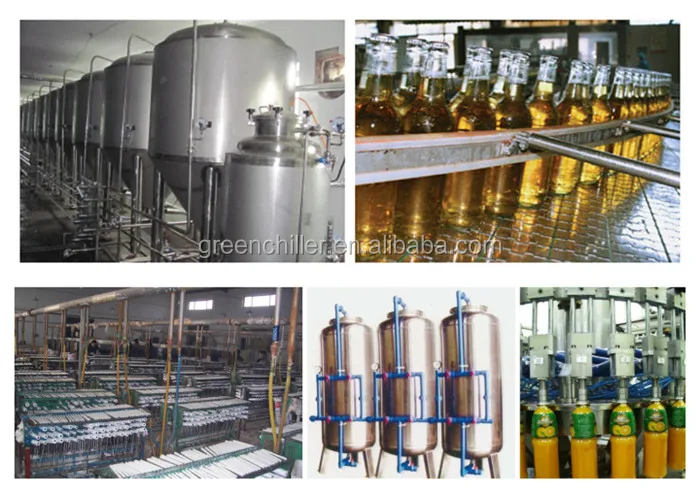

4.Application of Single Screw Refrigerator chiller

1).Food & Drink Processing Industry

The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it down through food grade stainless steel heat exchanger.

2).Other industry

Plastics industry,Electronic industry,Electroplating industry,Mechanical industry,Building industry,Vacuum coating,Chemical fiber industry.

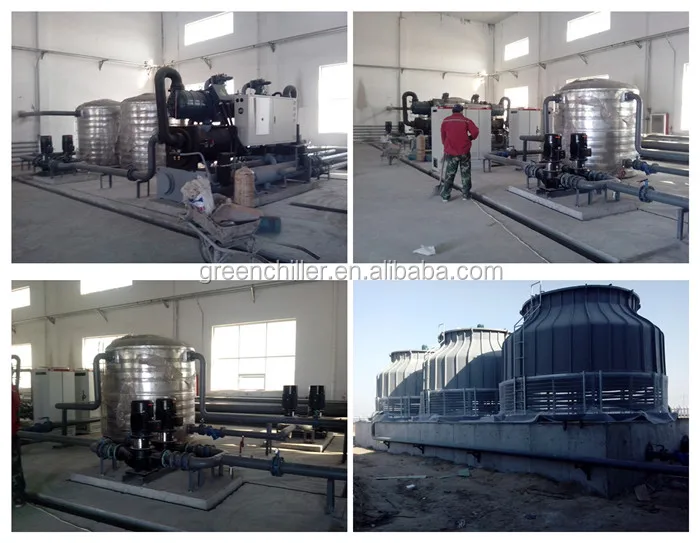

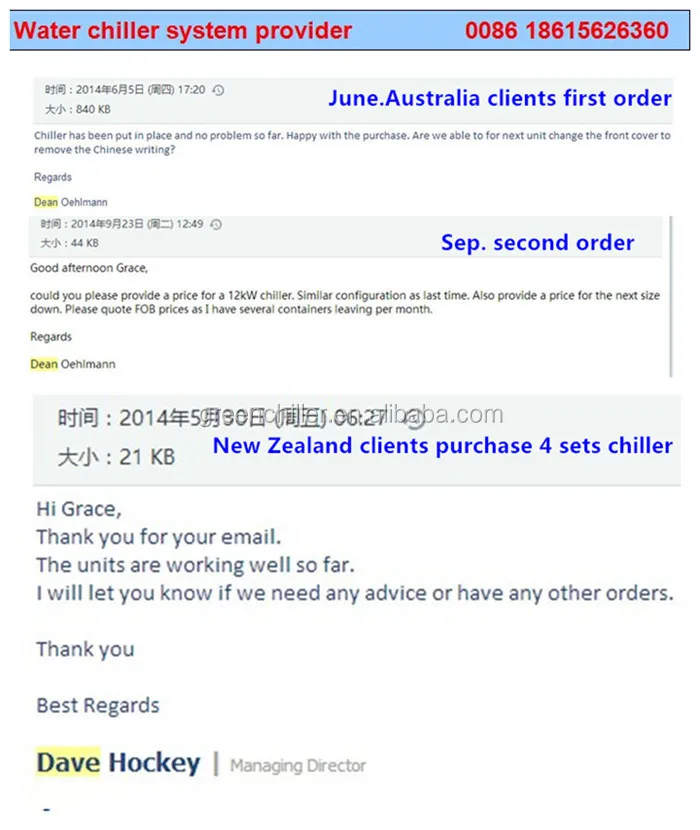

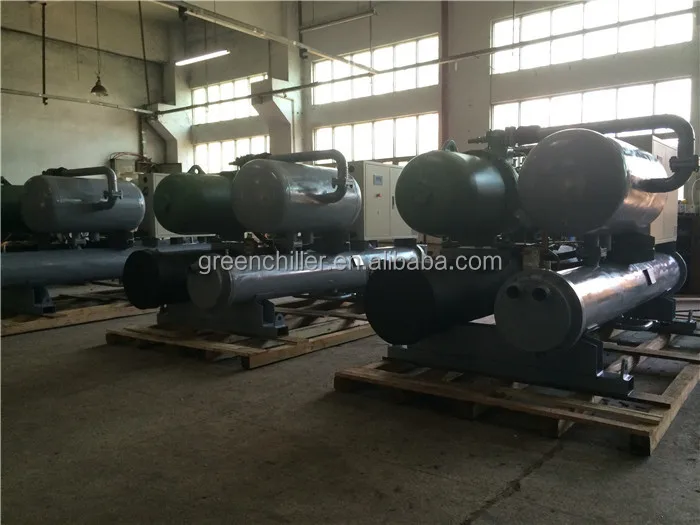

5.Customer site show of Single Screw Refrigerator chiller

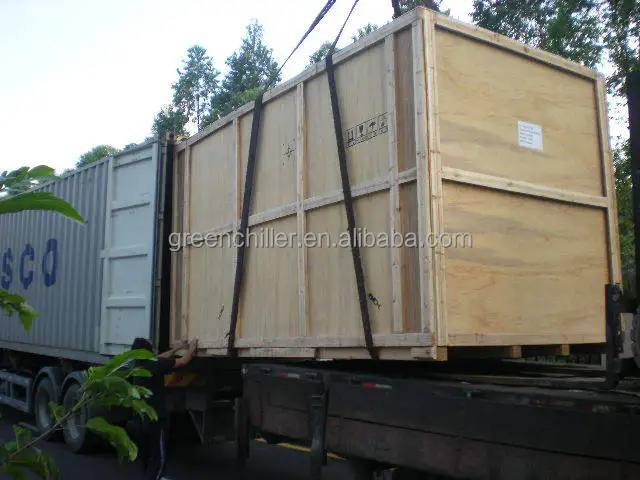

Packaging & Shipping

6.Shipping details of Single Screw Refrigerator chiller

Shipping port:Qingdao,Shenzhen,Shanghai,Guangzhou,Ningbo or as your need

Shipping charge: we can arrang it with CIF price for you, shipping charge will fom our gold cooperate shipping agent in 10 years. And also can arrange ith you own shipping agent.

Company Information

7.About our factory of Single Screw Refrigerator chiller

Shandong Mgreenbelt Machinery co., ltd is founded in 2003 with 120 employees and 10 technicians, covering 34000 square meters.

We are a leading specialized manufacturer of industrial water chillers in Northern China.

8.Our team of Single Screw Refrigerator chiller

Export department talk with your directly, engineer,R&D department supply complete solution for you.

Our Services

9.Customized accept:

Just tell us:

A.What's your water composition? or industry

B.What's your temperature range?

C.What's your chilled water flow need?

10.Service:

A.14 Months warranty.

B.All extra parts for the machine can be purchased with agent price from MGreenbelt.

C.24 hours working phone call: +861861562630, Email/ Skype/ MSN/ Trade manager online to support.

D.Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.

FAQ

11.FAQ

1.Can you accept custmize of Single Screw Refrigerator chiller?

Yes, we have R&D department, can supply you a complete solution, you just tell me what you need, then we will send all design ad details.

2.How about afte-service of Single Screw Refrigerator chiller?

We establish a archives for every customer,give you a return visit timing, engineers one to one talk with you for technical support.

3.How about the delivery of Single Screw Refrigerator chiller?

Sorry, we don't have stock of the machine because order busy, but normall parts in stock, so we have to 10-20 days for prepare, it in order to Grace's final confim with you.

If you have more wondering, please dn't hesitated to contact with our gold sales Ms Grace zhang:

Cell:008618615626360(Call,WhatsApp, viber)

Skype:mb.gracezhang

Thanks for your visit,we just have few questions want to make sure, so that give you a accurately solution?

1.What's the cooling capacity?

2.What's the inlet/outlet temperature do you need?

3. Refrigerant use R22,R407c,R134a?

4.What voltage do you need?

Looking forward distributor from all over the world,CE,OEM approved!
