Discount screw type compressor air cooled 100 ton chiller easy operate and install

FOB Price:

US 15,000-25,000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

3000 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,Western Union,MoneyGram

Brand:

MGREENBELT 100 ton chiller

Products Model:

MG-150CS 100 ton chiller

Products Details
Company Profile

Quick Details

Brand Name: MGREENBELT 100 ton chiller

Model Number: MG-150CS 100 ton chiller

Place of Origin: Shandong, China (Mainland)
Condition: 100 ton chiller
Type: Air-Cooled
Cooling Capability(kw): 404kw
Voltage: 3PH~220V/380/415V~50HZ/60HZ
Dimension(L*W*H): 4750*2200*2450mm 100 ton chiller
Weight: 4000KG
Certification: CE, ROHS, UL, ISO9001
Warranty: 14 Months
After-sales Service Provided: Engineers available to service machinery overseas
Cooling capacity: 115Tr , 347440kcal/h
Refrigerant: R134a/R407c/R410a
Compressor Brand: Bitzer,Refcom,Hanbell
Evaporator: Shell and tube
Chiller water flow: 69m3/h
Condenser: High efficiency copper shell and tube type
Chiller pipe diameter: DN100
Fan motor air flow: 150000m3/h
Chiller factory: Located in Jinan
Chiller Used for: Plastic, CNC work room, Equippment Cooling

Packaging & Delivery

Packaging Details: Standard wooden case / container
Delivery Detail: 15 working days

Specifications

Discount screw type compressor air cooled 100 ton chiller easy operate and install

Product Description

1.Working Principle Of Our 100 ton chiller

Working principle as the picture display, the main parts include hermetic scroll compressor, condenser, dry filters, expansion valve, evaporator, water pump, protection and etc.
When refrigeration, compressor suction the low temperature and low pressure refrigerant from evaporator to cylinder; after the compression become high temperature and high pressure gas discharge into the condenser; then after the air(air cooled chiller) or water(water cooled chiller) heat exchange, the heat was taken away by air or water become high temperature and high pressure liquid refrigerant; through the filter into the expansion valve, after expansion become low temperature and low pressure refrigerant, and then into the evaporator; suction the heat from water or air in evaporator, reduce the temperature of water/air to satisfy the refrigeration effective; the chilled water send to user equipment by pump, to satisfy the user’s refrigeration need. The refrigerant gas passes through the compressor suction again into the cylinder after gasification in the evaporator; this work is keep cycle then continuous to producing chilled water.

2.Features Of 100 ton chiller

(1). Superior compressors from famous brands(Bitzer,Hanbell,Refcom),high efficient shell condensers and evaporators with excellent cooling effect but low electric consumption.
(2). Equipped with precise electric temperature controller which is easy for operation and is capable of precisely controlling the water temperature from 7°c to 35°c.
(3). Stainless steel water tank avoid s rust and can be easily maintained or cleaned.
(4). Current-overload protector, high-and-low pressure switches, electronic time delayer,fault display system.Four main security systems to ensure safe operation.

(5). Single, double or quadruple compressors combination available which is economic and efficient.
(6). Applicable for cooling field in modern industry without influence from environmental temperature as the necessary equipment.

Detailed Images

Machine inner structure

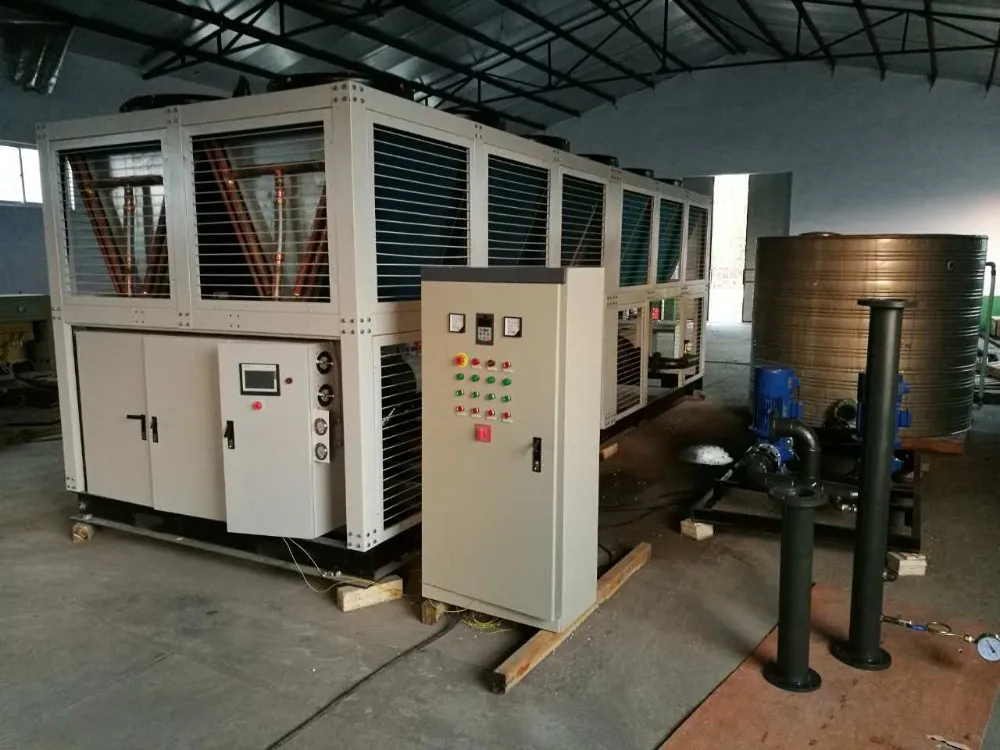

Siemens PLC control system, water pump skid-mounted control with variable

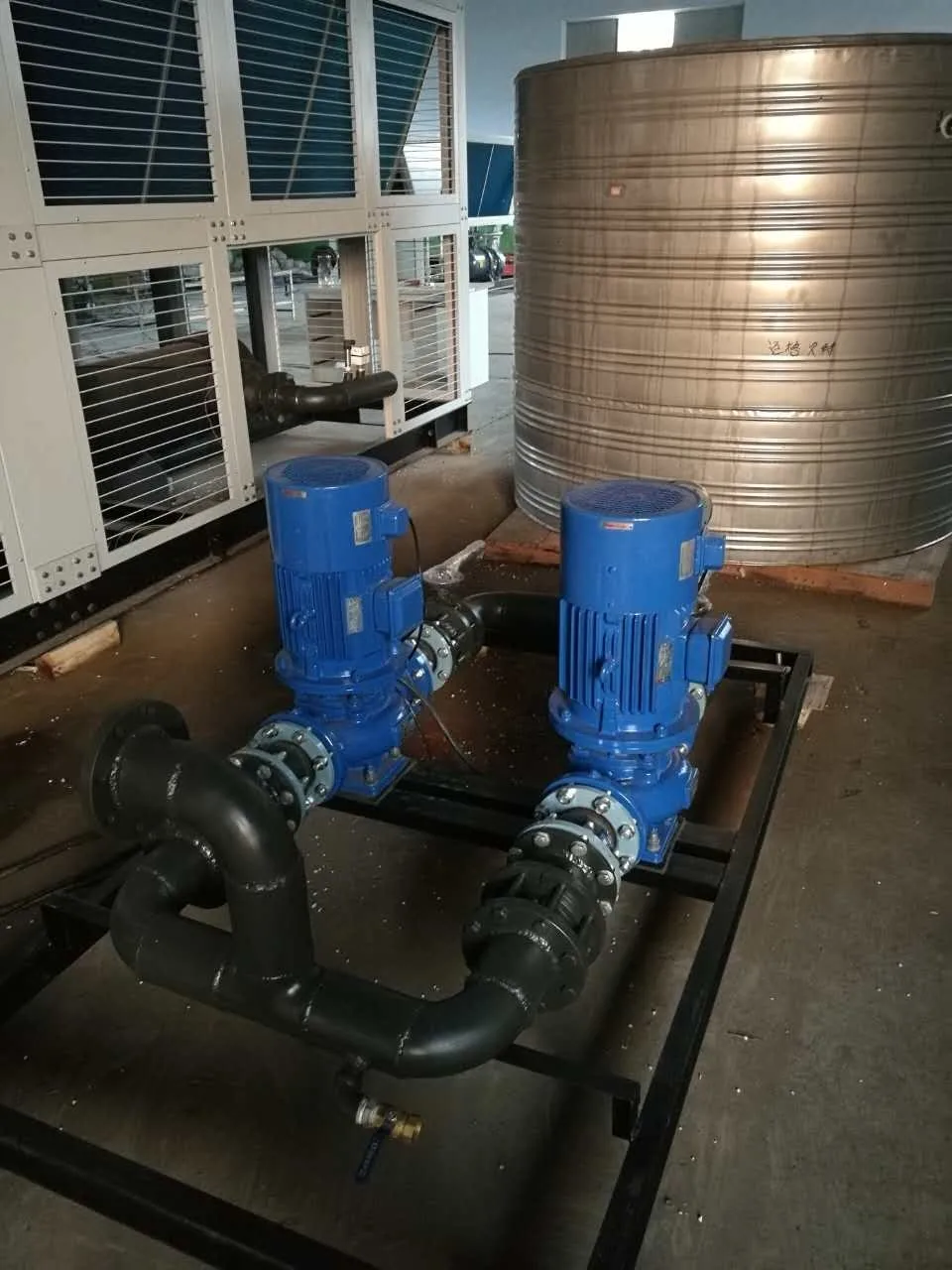

Minamoto pump

3. Specification Of 100 ton chiller

Model MG-120CS MG-150CS Cooling capacity USRT 87.6 114.9 Kcal/h 264880 347440 KW 308 404 Power supply 3Ph-380V-50HZ Refrigerant Type R134a/r407c/R410a/R22 Controler Thermostatic expansion valve Compressor Type Semi-hermetic screw Power(kw) 97 124 Start Y Capacity control 25%-50%-75%-100% Evaporator Type Shell and tube Water flow(m³/h) 53 69 Dia.of inlet/outlet(inch) DN80 DN80 Condenser Type Inner screw copper tube aluminum plate fins Air cooling flow(m³/h) 120000 150000 Protection System Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.

Established in the year 2003, we, " Mgreenbelt Machinery Co., Ltd," are engaged in manufacturing, exporting and supplying Chillers, Cooling Towers, Heat Exchangers and Components. Our range is appreciated by the clients based in various parts of China and world for its characteristics, such as robust structure, longer service life and high performance. The durable products are manufactured by experienced workers, using graded alloys and qualified electronic components. Further, for clients' covenience, we undertake the designing and turnkey projects for the devices.

At the sound manufacturing facility, we undertake the production of high performance machines. The quality controllers test the range, to ensure that it is in compliance with the degree of prevailing quality standards. Moreover, we also offer after sales services to ensure all the queries to be handled within the shortest time. We would like to grow and improve by anticipating consumers' needs, offering a better solution than competitiors and supporting customers to be confident of getting fast answers of requirement.

We have been successfully in offering machines to projects of Packaged Equipment and System, Automobile Components Producing System, Food Making, Bakery, etc. to clients from domestic, USA, Canada, Australia, Ecuador, Sudan, Russia, South Africa, Dubai, Israel, India, Philippine, Singapore, Vietnam, Thailand and Korea, etc.
