Double Spiral Freezer machine iqf quick freezer small iqf freezer food processing machinery

FOB Price:

US 10,000-999,999 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5 Set/Sets per Month

Port:

Ningbo

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Xinye

Products Model:

WDL

Products Details
Company Profile

Quick Details

Brand Name: Xinye

Model Number: WDL

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: wooden box and bare machine for Double Spiral Freezer machine iqf quick freezer small iqf freezer food processing machinery
Delivery Detail: 120 Days

Specifications

Product Description

Double Spiral Freezer machine iqf quick freezer small iqf freezer food processing machinery

♣ Double Spiral Freezer
Evaporator, adopts the aluminum tube coated with aluminum plate, unique alternative fin space design, which helps to prolong the defrosting time.
High pressure fan, to guarantee the foodstuff to stay floating and prevent the particles from sticking together
Standard heat preserving board, quickly assembled, combined closely, superior heat preserving effect
Evaporative temperature, -40C
Condensation temperature, +35C
Defrosting: water
Defrosting time: every 8-12hours, last no more than 2hours each time
Electric control cabinet, control the speed of the mesh belt, processing time, display the running speed and inner temperature.

Model	WDL-500	WDL-750	WDL-1000	WDL-1500	WDL-2000
Capacity(kg/h)	500	750	1000	1500	2000
Frozen time(Min)	15-90
Refrigeration capacity(kw)	85	125	165	220	300
Installed power(kw)	16.2	21.7	21.7	24.6	27
Dimension size(m)	75.53.1	7.563.3	7.763.8	8.36.24.5	8.86.54.8

DOUBLE SPIRAL FREEZER
Model	WLS -1000	WLS-1500	WLS-2000	WLS-2500	WLS-3000
Capacity±10%(kg/h)	1000	1500	2000	2500	3000
Freezer room size(meter)	12.54.63.1	13.15.03.6	16.15.13.9	16.15.34.3	17.164.8
Cooling consumption(kw)	165	220	300	360	400
Installed power(kw)	20	24	32	40	46
Frozen time	15~90mins (depends one different food and different conditions)
Note: 1. Spiral Freezer is based on freezing chicken. Loading density: 5.5kg/m2, in feed temperature: +50, out feed temperature: -18,freezing temperature:-35±2. 2. Depending on the different products, the freezing time can be adjusted 3. Refrigerant capacity is counted on the base of +35 condensing temperature and -42 condensing temperature. 4. The technical parameter can be design nonstandard depending on the freezing food

Our spiral freezer is designed based on our many year s of experience in spiral freezer and manufacturing. The food motion on the winder tunnel of our spiral freezer during the freezing time, so the spiral freezer can make a true individual quick freezing with a small workshop occupation.

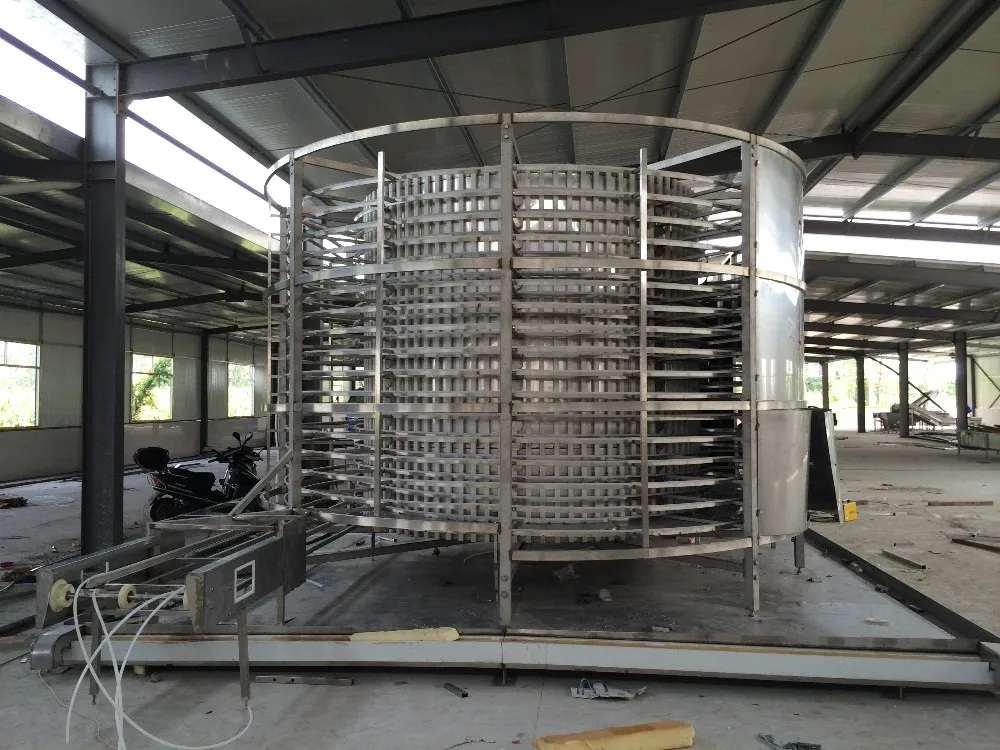

Spiral Freezer Frame：

Frame take 70*70*2.8mmSUS304 stainless steel tube
Structure frame make of 60*30*2.2mm，60*60*2.8mm stainless steel tube
Belt pressure pin make of 25*25*2.2mm stainless steel tube.
Belt supporting article make of 35*5mm stainless steel flat steel.
Airduct etc inside frame make of 40*40*1.2mm SUS304 stainless steel tube.

Mesh Belt：

•Long service life is prolonged.

•Smooth and neat in surface.

•Stable and reliable in running.

•Applicable to IQF and BQF of different products.

Motor

To diminished the drive part, improve the drive's precision, the drive electromotor is set out of the freezer. The motor revolving drum firsthand. With out liquid in the freezer, facilitate to maintain

♣Spiral Freezer Main Feature:

1) Simple structure in linear type ,easy in installation and maintain.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization, no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Characteristic

(1)High efficiency

Even airflow makes the products “totally fluidized” and reach high efficient quick single freeze.

(2)Energy saving

Complete closed heat preservation construction reduces the cold loss greatly and saves energy efficiently.

(3)Safety

Total cleaned freezing condition in accordance with HACCP and international food sate requirement.
