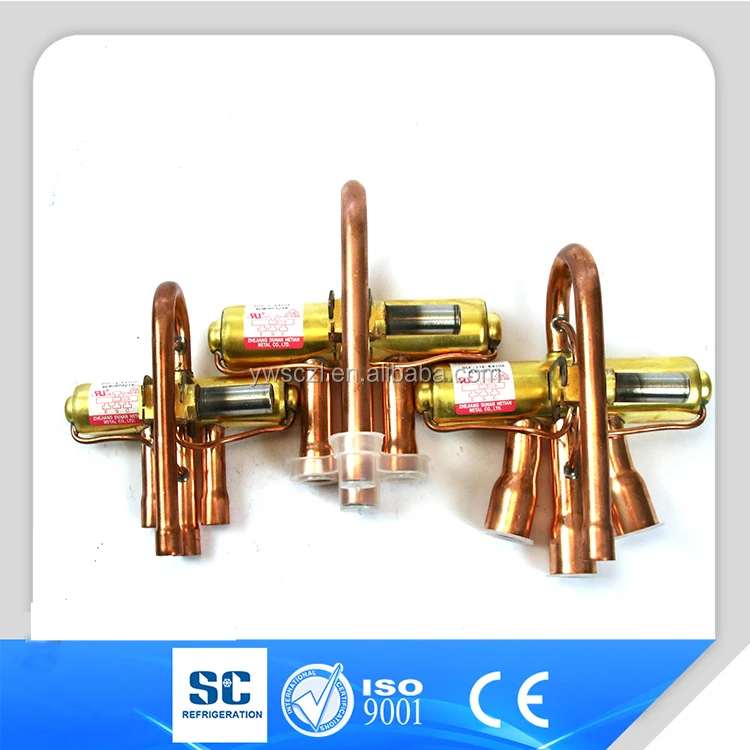

air conditioiner parts 4 way solenoid valve reversing valve

FOB Price:

US 2-10 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Ningbo/ Shanghai Port

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

DUNAN

Products Model:

DSF-4-R410A

Products Details
Company Profile

Quick Details

Brand Name: DUNAN

Model Number: DSF-4-R410A

Place of Origin: Zhejiang, China (Mainland)
Type: Air Conditioner Parts, Air Conditioning Fitting
Application: Home
Certification: CE
Product Name: Air Conditioner 4-way solenoid valve
Material: Copper
Refrigerant: R22/R407C/R410A
Working Temperature: -30~+120℃
Sample: Supply
Usage: Air Conditioning

Packaging & Delivery

Packaging Details: Strong export carton
Delivery Detail: --

Specifications

Product features:

l Operating under minimum pressure differential to ensure that the pressure drop and internal leakage across the 4-way valve can be minimized;

l Such advantages as small fluid reversing change inside of valve, short flow path and big circulation during the operating process of 4-way valve, which improve system refrigerating capacity and energy efficiency ratio;

l Solenoid coil is sealed by thermosetting plastics package, which has excellent water resistance, anti-lightning resistance and insulation properties.

l Long service life.

l Wide range of application: 4kW~210kW.

l Bistable 4-way valves have the advantage of energy-saving, low temperature, low noise, good ability of anti-system abnormalities recoil and good anti-vibration performance.

l Stainless 4-way valves have the advantage of excellent sealing performance, energy-efficient, light weight, good vibration resistance, environmentally friendly manufacturing processes.

Technical index: Applicable refrigerant:R22,R134a,R407C,R410A,R32;

Relative humidity:Below 95%R

Series Spec	Medium temperature°C	Environment temperature°C	Maximum working pressure MPa
DSF-4~210	-30~+120	-30~+70	4.5
DSF(S)-4~9
DSF(D)-4~9
DSF(DS)-4~9

Coil parameters:

Type	Series	Nominal voltage V	Frequency Hz
Radial coil	DXQ series	AC265~277,AC220~240,AC208~240,AC200,AC110~120,AC100	50/60
Radial coil		DC12,DC15.4,DC24	/
Inserted coil		DC12,DC24,AC24	50/60
Bistable coil	DXQ(D)series	AC100,AC200	50/60,Not smooth rectifier
Bistable coil	DXQ(D)series	DC15	/

Notes: The length of wires could be supplied according to customer demands.

Model	Nominal diameter		R22 Nominal capacity		Flow		Working differential pressure MPa		Tubing specification in
	Nominal diameter		R22 Nominal capacity		Flow		Working differential pressure MPa		Tube-D		Tube-ESC
	[mm]	[in.]	kW	TR	Cv	Kv	Max	Min	[mm]	[in.]	[mm]	[in.]
DSF(D)-4	8.0	0.315	4..92	1.41	1.97	1.68	3.1	0.3	7.94	5/16	9.52	3/8
DSF(D)-9	11.1	0.437	9.85	2.81	3.47	2.97	3.1	0.3	9.52	3/8	12.70	1/2

Model	A [mm]	B [mm]	C [mm]	L1 [mm]	L2 [mm]	L3 [mm]	L4 [mm]	L5 [mm]	H1 [mm]	H2 [mm]	H3 [mm]	H4 [mm]	H5 [mm]	Weight g
DSF(D)-4	9.52	7.94	21	94	12	12	29	42	10	8.5	50	62	102	215
DSF(D)-9	12.7	9.52	26.3	117	16	16	32.5	52	10	10	59	71	119	315

Model

[mm]

Weight g

DSF(D)-4

9.52

7.94

8.5

102

215

DSF(D)-9

12.7

9.52

26.3

117

32.5

119

315

Model	A [in.]	B [in.]	C [in.]	L1 [in.]	L2 [in.]	L3 [in.]	L4 [in.]	L5 [in.]	H1 [in.]	H2 [in.]	H3 [in.]	H4 [in.]	H5 [in.]	Weight g
DSF(D)-4	3/8	5/16	0.83	3.70	0.47	0.47	1.14	1.65	0.39	0.33	1.97	2.44	4.02	215
DSF(D)-9	1/2	3/8	1.04	4.61	0.63	0.63	1.28	2.05	0.39	0.39	2.32	2.80	4.69	315

Model

[in.]

Weight g

DSF(D)-4

3/8

5/16

0.83

3.70

0.47

1.14

1.65

0.39

0.33

1.97

2.44

4.02

215

DSF(D)-9

1/2

3/8

1.04

4.61

0.63

1.28

2.05

0.39

2.32

2.80

4.69

315

Packaging & Shipping

1. Export carton,or according to customer's requirements

2. Generally 30days after received your deposit ,will send to Ningbo or Shanghai port.

Yiwu Shuangchuang Refigeration Equipment Co., Ltd. is a professional copper tube and copper fittings manufacturer. It mainly makes copper eblow,coupling,tee,central air-conditioning disperse pipe,special copper fitting and kinds of brass fittings,the products used in central air conditioning,refrigeration equipment,water supply pipe,oxygen to hospital,car,etc. The size is 6 to 219 mm for copper fittings.
The products are mostly exported to USA, Canada, Australia, Middle East, Southeast Asia etc. and domestic market.Have good reputation.We will wholeheartedly provide our clients with high-quality and reasonable-price products.
We also support products customizaion, if you have drawings of your product is better.
