Full automatic rectangular line V

Full automatic rectangular line V

FOB Price:
 Open price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
5 Set/Sets per Month
Port:
shanghai
Place of Origin:
Jiangsu, China (Mainland)
Payment Terms:
L/C,T/T,Western Union,cash
Brand:
SBKJ
Products Model:
SBAL-V
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: SBKJ

    Model Number: SBAL-V

    Place of Origin: Jiangsu, China (Mainland)

  • Condition: New

    Type: Pipe Production Line

    Pipe Material: stainless steel,aluminum,galvanized steel

  • Application: HVAC

    Certification: ISO

    Warranty: one year

  • After-sales Service Provided: Engineers available to service machinery overseas

    coiler max weight: 8000kg

Packaging & Delivery

  • Packaging Details: plywood case
  • Delivery Detail: 60 days

Specifications

Hydraulic shearer and folding machine





Features:√  Modular design allows adding a section at a time√ Two sets of Twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)√ Straightening/flattening -Air pressure controlled six rolls straightener√  Air pressure controlled ring type beading rolls with five beading rings-optional by remove beading rings√ Notching & punching square√  Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle,roll forming and shearing simultaneously,shorten working time, a perfect match to duct auto line√ Optimizes floor space by inline position of machines,guarantees high efficiency√ Accurate PLC control unit, Preset available profiles and folding style, notching size,punching size,cutting dimension on touchscreeneasy operate  Capabilities:√  Alternative width for 1250mm material√  Sheet capacity: 18-27ga (0.4-1.2mm)√  Shearing tolerance of ±0.5mm√  Hydraulic folding diagonal tolerance of ±0.5mm√  0-54FPM (0-18m/min) feeding speed,fast acting back gauge

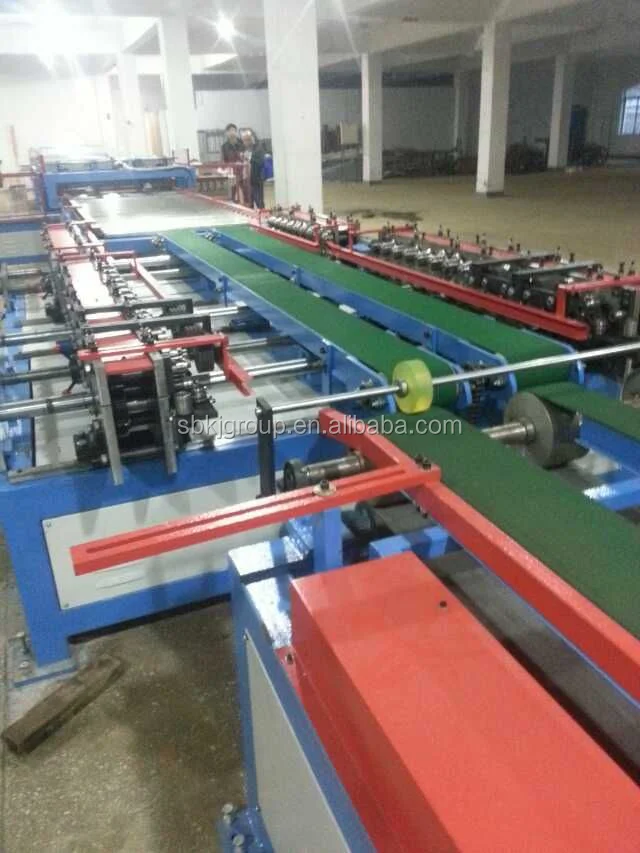

Stations: coil-straightening-beading-punching square-notching-shearing-folding-automotion pittsburgh lock forming-coil conveyer (optional)-duplex TDF flange forming -hydraulic folding
