Brand Name: Aitcool
Model Number: VP260
Place of Origin: Zhejiang, China (Mainland)
Type: Refrigeration Compressor
Certification: CE
Application: HVAC/R service
Theory: Vacuum Pump
Structure: two stage
Usage: Air Pump
Power: Electric
Standard or Nonstandard: Standard
Fuel: vacuum pump oil
Pressure: Low Pressure
Application: air exhaust of refrigeration equipment, vacuum packing,vacuum forming
Motor: 100% Copper Wire
Warranty: One Year
Feature: Long Life

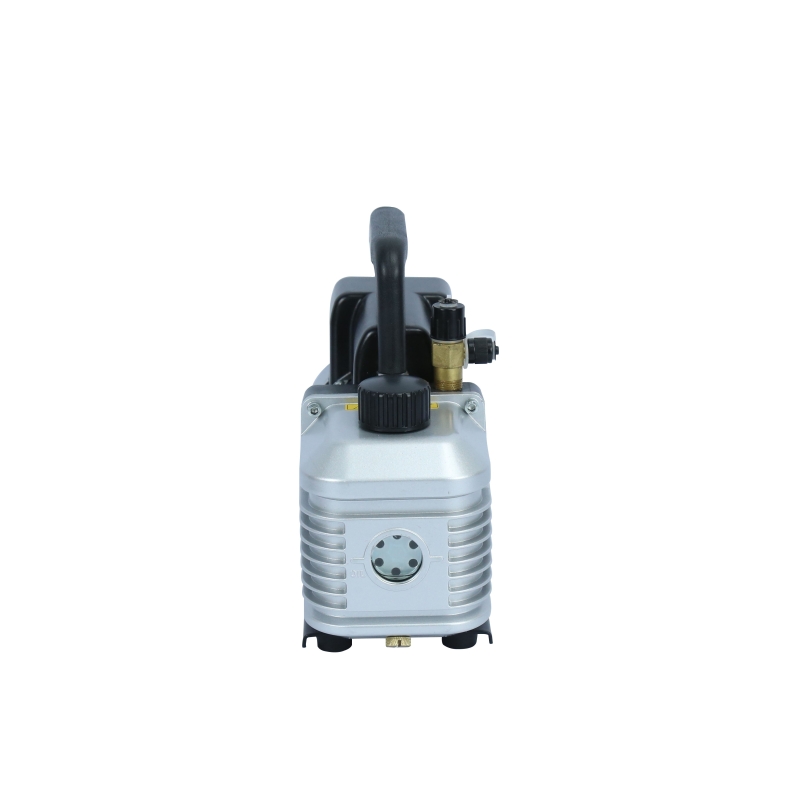

light portable car air conditioning machine two stage vacuum pump VP260
Technical data:
Models | VP260 | |
Flow Rate | 50Hz | 5.0CFM |
60Hz | 6.0CFM | |
Ultimate Vacuum | Partial Pressure | 2x10¯¹ Pa |
Total pressure | 15 microns | |
Stage | 2 | |
Power | 1/2HP | |
Inlet Port | 1/4"&3/8"SAE | |
Oil Capacity | 330ml | |
Dimensions | 320 x125 x230mm | |
Weight | 9.0kg |
Features:
1. Designed specially for HVAC/R service
2. Ultimate deep vacuum: single stage is 5PA, while dual voltage is 0.3 Pa
3. Compact design with aluminum hosing and easy to carry.
4. Thermal protector in the motor to guarantee the pump to run steadily.
5. Both 1/4' and 3/8' SAE flare inlet connections allow for flexibility of connections.
6. Vacuum pump oil included.
7. Suitable for all the main voltage design in the market.
8. Individual design for special customers.
