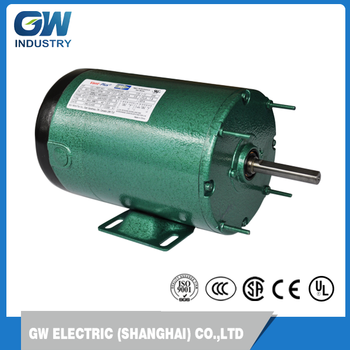

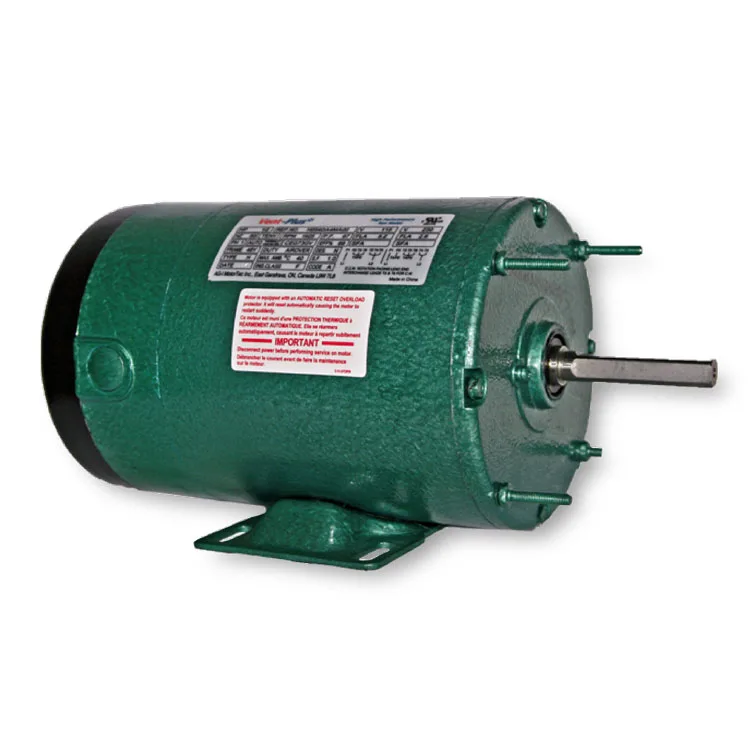

NEMA TEAO RMP1625 ac motor engine 48 with feet

NEMA TEAO RMP1625 ac motor engine 48 with feet

FOB Price:

US 129-162 / Piece

Min.Order Quantity:

20 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shanghai port

Place of Origin:

Shanghai, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T

Brand:

Products Model:

Electric Motor

Products Details
Company Profile

Quick Details

Brand Name: GW

Model Number: Electric Motor

Place of Origin: Shanghai, China (Mainland)
Type: Asynchronous Motor
Frequency: 60HZ
Output Power: 0.25-0.50HP
Protect Feature: Totally Enclosed
Phase: Single-phase
Certification: CCC, CE, ROHS, UL, CSA
AC Voltage: 115V/230V
Efficiency: IE 3
OVER-LOAD: AUTO
FRAME: 48
S.F: 1.0
INS.CLASS: F
ENCL.: TENV
DUTY: AIROVER
Ambient temperature: -15°C≤0≤40°C
Altitude: Not exceed 1000m
Standard: NEMA standards
Product Name: NEMA TEAO RMP1625 ac motor engine 48 with feet

Packaging & Delivery

Packaging Details: Packaging Details: Export standard: inner box+carton+wooden case Delivery Detail: Within 20-30 days after received the deposit
Delivery Detail: Shipped in 30 days after payment

Specifications

Product Description

NEMA TEAO RMP1625 ac motor engine 48 with feet
FEATURES
· Benchmark variable speed performance - OEM replacement
· Water-tight compartment houses wiring, auto thermal, and capacitor
· Locked, double sealed bearings for all angle mounting
· Precision balanced rotor
· Oil seal in drive end

Motor Technical Data

UNIQUE DESIGN FEATURES NEMA TEAO RMP1625 ac motor engine 48 with feet

HP	RPM	FRAME	REF.NO.	VOLTAGE	230V FLA	WGT LB/KG
.25	1625	48	N48BE25Y18D10AA	115/230	1.3	18/8.2
	1 625	48	N48E25Y18D10AA	115/230	1.3	18/8.2
	1 625	48	N48P25Y18D10AA41	115/230	1.3	18/8.2
	1 060	48	N48BE25Y12D10AA	115/230	1.3	21/9.5
.33	1 625	48	N48BE33Y18D10AA	115/230	1.8	19/8.6
	1625	48	N48E33Y18D10AA	115/230	1.8	19/8.6
	1625	48	N48P33Y18D10AA41	115/230	1.8	19/8.6
	1 075	48	N48BE33Y12D10AA21	115/230	1.9	22/10.0
.50	1 625	48	N48BE05Y18D10AA	115/230	2.6	22/10.0
	1 625	48	N48E05Y18D10AA	115/230	2.6	22/10.0
	1 625	48	N48P05Y18D10AA42	115/230	2.6	22/10.0
	1 060	48	N48BE05Y12D10AA	115/230	2.8	25/11.4
Mounting arms(each) 7 inch armfor 3 bracket models
Mounting arms(each) 12 inch armfor 3 bracket models

Packing & Delivery

Packaging Details: Export standard: inner box+carton+wooden case

Delivery Detail: Within 20-30 days after received the deposit

Application Case

ManufacturingProcess

GW Industry is a leading motor manufacturer which was formally known as Shanghai Micro Motor Factory (established in 1952) and joint venture with Regal-Beloit from 2002 to 2014. The JV manufactured motors for Regal Beloit under the Leeson, Marathon, and Lincoln brands.After dissolution in 2014, this entity has become part of GW Industrial Group.

Our company produces and sells a variety of NEMA/IEC design motors including single-phase / three-phase AC asynchronous motors, brush/brushless DC motors under brand “GW”, “AG-I”, and “SMC”. Over 70% of our products are sold to US, Canada, and European markets, serving industrial applications such as Fan-Blower, Agricultural Equipment, Wash-Down Equipment, Pump, Hydraulic Machinery, Transmission Apparatus, etc.

To satisfy customer’s needs, our products are certified by UL, CSA, CE, and CCC; and all materials in our products comply with RoHS requirements. Our lab has been certified by UL and CSA since 2007, being capable of performing UL/CSA certification test on site.
