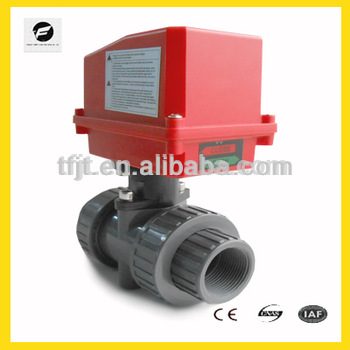

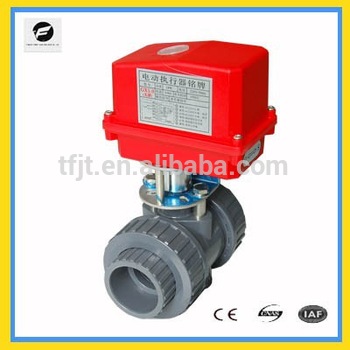

UPVC DN50 63mm AC220V CTF 002 electric On Off valve for industrial grade water treatment project

UPVC DN50/63mm AC220V CTF-002 electric On-Off valve for industrial grade water treatment project

Characteristic and performance

1/2'' to 2.5'' UPVC
 New alloy material shell
 Metal gear, large output torque
 Active  and  Passive signals output
 Voltage :  AC 220V / 50Hz
 With manual function, with open/clsoe indicator.
 Power : alternating current: 14W
 Working current: 500mA
 Ourput torque : 100NM
 Working pressure : 0 1.6Mpa
 Temperature : 0 60 degree celsius
 Open/close time: 18-25 seconds
 Protection : IP67

Actuator code:  CTF series
Voltage:DC12V,DC24V, AC220V,
Torque output: 25 NM- 100NM
Working Pressure: 0-1.6 Mpa(16bar)
Temperature:0 to 100 Degree Celsius
Size Scope: ball valve,15-65(mm); butterfly valve 40-125(mm)
Open/Close time: 10 -- 25sec
Number of wires: 2-5 wires
Protection class :  IP67

Series CTF actuators with its smart design, wonderful shape, are suitable for many kinds of vavles. It has proved its superior quality for its stable nature, and good quality. These actuators are return type and suitable to DC or AC (will be set in the factory), can be controlled by outside cut off.  This actuator run low cost and does not need to be maintained.

 DC or AC (should be set in the factory), control mode is flexible, convenient to microprocessor and realize the automatic control by PLC.
 Manual/electrically operated integrated design, Simply to operate.
 Large output torque, inner protecting overheated device, working stable and reliable.
 Low noise, good leak-proof. Through the coupling, the valve will be installed and operated    easily.

Certificate

Company Information

Suitable for

 Key words:

mini electric ball valve for water treatment,HAVC,automatic control,for watermeter motorised ball valve
for watertreatment/ for IC card meters/for air-warm valve HVAC motorised ball valve
Mini dimension suits for small equipment/HVAC Water treatment Small equipment for automatic control
Replacing solenoid valve, particularly when solenoid cannot work reliably
mini motorised valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve, shut off valve, hydraulic valve, electric valve, electronic valve.
electric valve for water automatic control,brass or stainless steelmini motorized valve, actuated valve, motor operated valve, motor actuated valve, automatic valve, control valve,
shut off valve, actuator valve, electric operated valve
